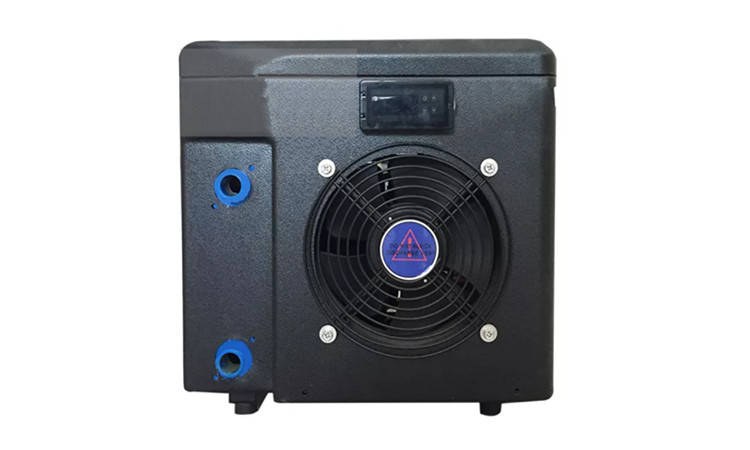

Above Ground Swimming Pool Heat Pump
The above ground swimming pool heat pump collects free heat from the air and transfers it to the water in your swimming pool to heat the above ground swimming pool. The heating method that will greatly reduce your carbon emissions is the most environmentally friendly heating method.
The heat pump will bring you the lowest operating cost. For every 1kw of electric energy used by the heat pump, it will output about 5kw of heat to the above ground swimming pool.
The above ground swimming pool heat pump can cool your above ground swimming pool in summer. Winter can heat up your above ground swimming pool. So you can use it all year round. This will greatly extend your swimming time.
Features of Above ground swimming pool heat pump:
1. Stainless steel shell, corrosion resistant and more durable.
2. Compact structure, easy to disassemble and assemble.
3. High-efficiency compressor with R410a or R407c refrigerant.
4. Flow switch, used for water flow protection.
5. Can be used for home or commercial applications.
6. Intelligent LCD line controller with touch screen display.
7. Air exchanger (finned coil) with hydrophilic coating.
8. Contains automatic defrost function. (Internally equipped with reverse circulation valve)
9. "All-season" model, can run before -10°C
10. Quiet running low-noise scroll compressor, low-noise fan
Specifications of the above ground swimming pool heat pump:
-Heating power input: 5KW 8KW 12KW 20KW 24KW 48KW 96KW 145KW 220KW
-Voltage/phase/frequency: 220-240V / 1PH / 50HZ
-Toshiba rotary compressor-
-Coefficient of Performance (COP): 5.4-
Water flow: 3-3.5 m3 / h
-Maximum water output temperature: 40ºC
-Sound level: 48 dB (A)
-Water connection: 2 inches
Heat Pump Key Componets:
Smart control: microprocessor-based digital controller with LCD display digital controller
American Compressor: Copeland Scroll has high working efficiency.
PVC Titanium Heat Exchanger: resistance to chemical corrosion and pool corrosion
Axial Fans: high wind and low noise
Eco-friendly Refrigerant: without ozone depletion
Silver welding: avoid refrigerant leakage
1. Heat Pumps have CE and RoHS certificates.
2. 1 year warranty
3.1% spare parts are repaired free of charge.
Leomon Technology can design and produce above ground swimming pool heat pump according to customers' special requirements.
Above Ground Swimming Pool Heat Pump Applications:
Above Ground Swimming Pool Heat Pump Installations:
Above Ground Swimming Pool Heat Pump Connection Diagram:
