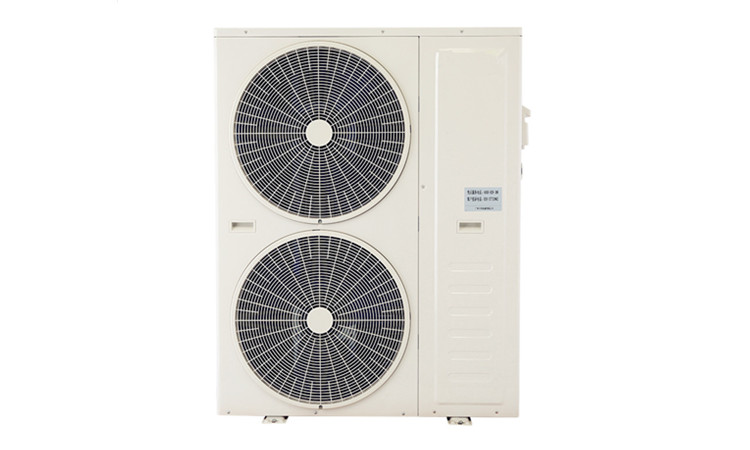

Air Source EVI Heat Pump Price
The air source evi heat pump can meet the demand for heating in winter,
cooling in summer and domestic hot water throughout the year in cold regions.
Using EVI technology, this heat pump can work well in cold areas such as -25°C.
The air source heat pump uses free renewable energy from the air. The
EVI heat pump has high efficiency and low cost. Compared with traditional
electric water heaters, it can save energy up to 80%. The COP is 30% higher
than that of ordinary air source heat pumps.
The evi heat pump uses renewable energy, which is the best
choice for environmentally friendly heating.
The air source heat pump can meet the hot water and residential
heating needs of different places such as villas, houses, schools, factories,
hotels, hospitals, spas, sauna centers, greenhouses, gardens, farms, etc.
Best-selling markets: the world, especially in Northern and Eastern
Europe, and North America.
Air Source EVI Heat Pump Features:
1).EVI compressor is specially designed for high water temperature
2). Intelligent controller, fast microprocessor adjustment
3). Water exchanger with high-efficiency pipes in the shell heat exchanger
4). Multiple protections to protect the compressor and heat exchanger
5). Indoor and outdoor split or integrated design, easy to install
6). Including automatic defrost function (with reverse valve inside)
7). It can be used for floor heating, fan coils, water heaters and modern radiators
8). The perfect defrosting system allows the unit to work at an ambient temperature of -20 degrees Celsius
9). R417a or R407c refrigerant, environmental protection-green energy, no CO2 emissions
10). Safety: Water and electricity are completely isolated, and there are no potential hazards such as flammable, gas poisoning, explosion, fire, electric shock, etc. related to other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Heat Pump Components:
1.Silver welding
Silver welding technology makes the unit system more reliable; it is likely that it will avoid refrigerant leakage
2. Intelligent control
Unit adopts intelligent control system: microprocessor-based digital controller, LCD display
3. Efficient and environmentally friendly refrigerant, does not destroy the ozone layer
4. Hot gas defrost
Lanwei defrosting system adopts "SAGINOMAMIYA" four-way valve. It can defrost itself intelligently and efficiently
5.EEV technology
The electronic expansion valve technology adopted by Blueway is a very unique and advanced technology. Through the intelligent control of refrigerant flow, the use of electronic expansion valve (EEV) has many advantages to the system.
1. EEV adds heating output and COP
2. EEV improves overall operational reliability
3. EEV extends the service life of the compressor
6. DC inverter, energy saving
The DC inverter technology enables the unit to obtain higher efficiency and can save more than 30% of energy consumption per year.
7. The famous-brand plate heat exchanger ensures the high efficiency and reliability of the entire heat pump system
Air Source EVI Heat Pump Specificaitons:
Power range: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.
Item |
LM-B5SDF |
Rated heating capicity |
19.7KW |
Input power |
4.69KW |
Voltage |
380/50/3V/Hz/Ph |
Rated current |
8.4A |
Rated output water temperature |
55°C Max temp.: 60°C |
Hot water ouput |
420L/H |
Refrigeration |
R410a |
Control mode |
Microcomputer central processor (LCD control panel) |
Compressor Form |
Scroll type |
Compressor |
1 Pcs |
Compressor Brand |
Copeland |
Unit Net size |
1132*460*1255 |
Unit Weight |
160Kg |
Unit Nosie level |
≤55dB(A) |
Fan Form |
Internal rotor motor, magnesium aluminum alloy leaves (low noise) |
Fan Power |
90*2W |
Ambient temperature |
-25℃ -- 43℃ |
Package size |
1174*490*1397 mm |
Qty loading 20" container |
22set |
Qty loading 40" container |
44set |
Inlet pipe diameter |
DN25 |
Outlet pipe diameter |
DN25 |
