Domestic Air Source Heat Pump Hot Water Heater
The air source heat pump hot water heater can be used not only to heat
and cool your home, but also to heat water. The air source heat pump is
designed to meet the requirements of decarbonization and effectively transfer
atmospheric heat through the refrigeration cycle for domestic hot water.

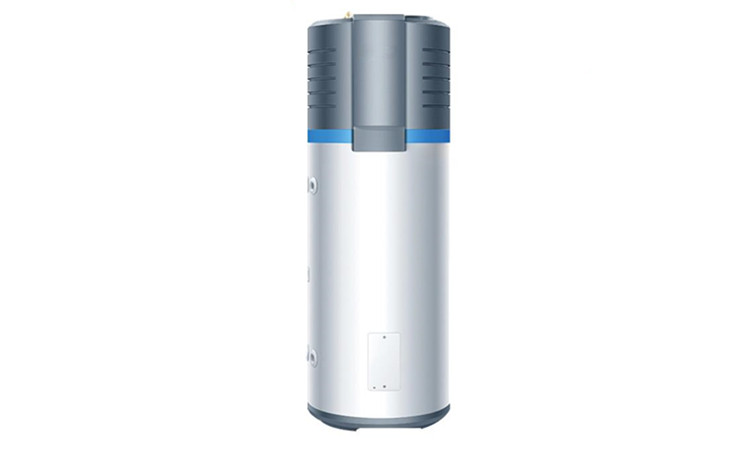

The heat pump water heater looks like a tall cylinder. It consists of an
air source heat pump at the top and a hot water tank at the bottom.
The efficiency of heat pump hot water heater is three times
that of traditional water heaters, which can reduce operating costs by 50%.
The air source heat pump system absorbs heat from
outdoor air in winter and indoor air in summer. It is very convenient to use
for cooling in winter and heating in summer.
Domestic Air Source Heat Pump Hot Water Heater Features:
1. Microprocessor-based digital controller with LCD display
2. Hot water temperature setting: 30-60°C There is no potential risk of contaminating drinking water
3. High-efficiency rotary compressor ensures quiet operation
4. R134A or R410A refrigerant without CFC, does not destroy the ozone layer
5. Energy saving, operating cost is only 1/3 of traditional electric water heater
6. The four-way valve ensures reliable defrosting function
7. Easy to install: easy installation by plumber or electrician, no need for professional refrigeration engineer
8. Simple operation: operate like a simple household appliance
9. Alco or Danfoss thermal expansion valve, to more accurately control pressure and temperature to ensure fatigue resistance, thereby prolonging the service life.
10. Safety: water and electricity are completely isolated, no potential hazards such as flammability, gas poisoning, explosion, fire, electric shock, etc. are associated with other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Air Source Heat Pump Hot Water Heater Specifications:
Storage capacity: 100L, 200L, 250L, 300L, 500L, etc.
Model No. |
LM 010-S150 |
Rated heating capacity |
3000 W |
Rated heating capacity |
10000BTU/H |
Rated hot water |
70L/h |
Rated input power |
865W |
Running current |
4.2SA |
Max power |
1250W |
Auxiliary electrical heating |
1000-2000W |
COP |
3.5 |
Rated temperature outlet |
55℃ |
Maxt temperature outlet |
60℃ |
Power supply |
220-240/1/50 /60V/Ph/Hz |
Compressor quantity |
1Pcs |
Compressor type |
Panasonic Rotary |
Fan motor quantity |
1 Pcs |
Fan motor input power |
175W |
Fan speed |
1400RPM |
Air volume |
700M³/h |
Noise |
48dB(A) |
Tank volume |
150L |
Case material |
304 Stainless steel |
Water connections |
G3/4"Inch |
Ambient temperature |
36℃ |
Unit dimension D |
Φ555MM |
Unit dimension L |
1830MM |
Packing dimension |
625*625*1880 |
N Weight |
62KG |
G Weight |
72KG |
Container loading qty 20GP/40GP/40HQ |
24/48/48Pcs |
Measuring conditions |
Dry bulb 20℃ Wet bulb 15℃ |
