Air-to-Water Heat Pump with Integrated Domestic Hot Water
Air-to-Water heat pump captures heat energy from ambient air and
transfers it to the water needed to heat your home to provide domestic hot
water and even cool the house as needed.
Air-to-Water heat pump uses electricity to transfer heat from one place
to another instead of directly generating heat. Therefore, their energy
efficiency is two to three times that of traditional resistance water heaters.
Air-to-Water heat pump can also work normally in the coldest climate. It
has a large outdoor unit, which is designed to maximize the hot water
production capacity in winter and provide ultra-efficient cooling in summer.
Air-to-Water heat pump can be used with floor heating, radiators, fan
coils, etc. It will be very convenient and comfortable to use. And, the heat
pump will help you reduce your carbon emissions.
Air-to-Water Heat Pump with Integrated Domestic Hot Water Features:
1. Working air temperature range: -25C to 45C
2. The maximum discharge of hot water is 55 to 60 degrees.
3. The EVI turbo compressor is specially designed for high water
temperature.
4. EC fan motor, no noise
5. Smart remote control can store historical data for quick adjustment.
6. Copper pipe with inner groove can improve efficiency
7. Including automatic defrost function (with reversing valve).
8. It can be used for floor heating, fan coils, water heaters and modern
radiators.
9. Water heat exchanger: Circulating heating type is shell-and-tube type
and straight-tube type. Heating model.
10. R417a or R407c refrigerant, environmentally friendly, will not
deplete ozone
Air-to-Water Heat Pump with Integrated Domestic Hot Water
Specifications:
1. Power range: 14kW, 27kW, 41kW, 49kW and 95kW, 115kW, etc.
2. Rated working conditions: Rated working conditions: dry bulb
temperature: 20°C, wet bulb temperature: 15°C, cold water temperature: 15°C,
hot water temperature: 55°C.
3. The highest water temperature: 65℃
4. Rated voltage: 380V 3N-50HZ
5. Noise: <65 dB (A)
6. Anti-vibration level: I
7. Service life: 20 years
Heat Pump Key Componets:
Smart control: microprocessor-based digital controller with LCD display digital controller
American Compressor: Copeland Scroll has high working efficiency.
Japan Saginomiya four way control valve: No back flow and block.
Axial Fans: high wind and low noise
Eco-friendly Refrigerant: without ozone depletion
Silver welding: avoid refrigerant leakage
Warranty:
1. CE, CB, RoHS, Conform to EN14511-2:2011 test standard, ISO9001, ISO14001.
2. 2 years warranty
3. 1% spare parts are repaired free of charge.
Leomon Technology Service:
Leomon Technology provides customized services. We can design and produce Air Souce Heat Pump Cylinders according to customers' special requirements.

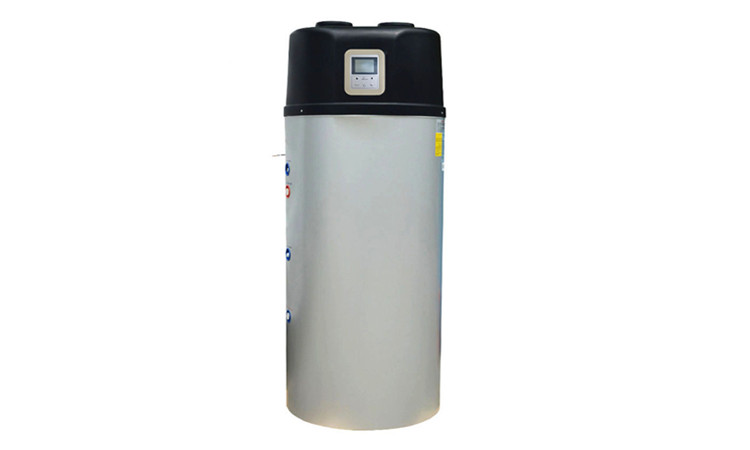

Air-to-Water Heat Pump with Integrated Domestic Hot Water 200L Specifications:
|
Model |
FAR-01(200L) |
|
Heating capacity |
3.5kw |
|
Water tank capacity |
200 L |
|
Heating power input |
0.91kw |
|
Operating current |
3.68A |
|
COP A20/W55 |
3.75 |
|
Power supply |
220~240V/1Ph/ 50Hz/60hz |
|
Compressor brand |
Hitachi / Rotary |
|
Refrigerant |
R410a / R407c |
|
Controller |
lcd digital |
|
Type of defrosting |
Reverse circulation |
|
Max.water temperature |
60 ℃ |
|
Rated water temperature |
55 ℃ |
|
Electrical heater |
1.5kw |
|
Hot water supply (L/H - from 15°C to 55°C) |
75L |
|
Sound level |
47 dB(A) |
|
Net weight |
80 kg |
|
Shipping weight |
92 kg |
|
Net dimensions |
560*560*1730 |
|
Shipping dimensions |
670*670*1860 |
|
Qty/20GP |
24 pcs |
|
Qty/40GP |
48 pcs |
Air-to-Water Heat Pump with Integrated Domestic Hot Water Componets:
Air-to-Water Heat Pump with Integrated Domestic Hot Water Applications:
Air-to-Water Heat Pump with Integrated Domestic Hot Water Installations:
Air-to-Water Heat Pump with Integrated Domestic Hot Water Connection Diagram:
