All in One Heat Pump Companies
Leomon Technology is one of the most professional all in one heat pumps companies in China. We focus on the production and research and development of
air source heat pumps.
As an air source heat pump factory, we have our own R&D team,
installation team, after-sales service team, and a complete performance
laboratory. You are welcome to buy our heat pump.

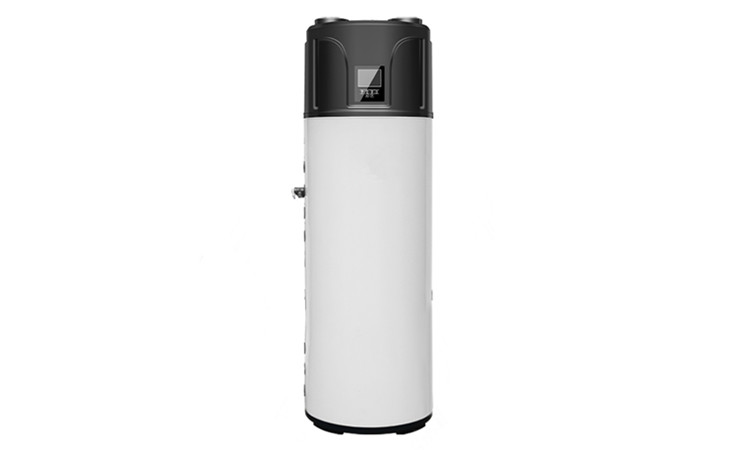

All in one heat pump is mainly to provide domestic hot water for
households, kitchens, bathtubs, showers, etc. The heat pump can heat water to
an adjustable temperature between 30°C and 60°C.
Air source heat pumps use renewable energy in the air to heat hot water.
This makes the heat pump highly efficient. It consumes 70-80% less electricity
than traditional electric water heaters.
Heat pump is the best environmentally friendly heating
solution. It will help you reduce your carbon emissions.
All in One Heat Pump Features:
1. Microprocessor-based digital controller with LCD display
2. Hot water temperature setting: 30-60°C There is no potential risk of contaminating drinking water
3. High-efficiency rotary compressor ensures quiet operation
4. R134A or R410A refrigerant without CFC, does not destroy the ozone layer
5. Energy saving, operating cost is only 1/3 of traditional electric water heater
6. The four-way valve ensures reliable defrosting function
7. Easy to install: easy installation by plumber or electrician, no need for professional refrigeration engineer
8. Simple operation: operate like a simple household appliance
9. Alco or Danfoss thermal expansion valve, to more accurately control pressure and temperature to ensure fatigue resistance, thereby prolonging the service life.
10. Safety: water and electricity are completely isolated, no potential hazards such as flammability, gas poisoning, explosion, fire, electric shock, etc. are associated with other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
All in One Heat Pump Specifications:
Storage capacity: 100L, 200L, 250L, 300L, 500L, etc.
Model No. |
LM-KZJRS-S200 |
Rated heating capacity |
3000W |
10000BTU/H |
|
Rated hot water |
70L/h |
Rated input power |
865W |
Running current |
4.2A |
Max power |
1250W |
Auxiliary electrical heating |
1000-2000W |
COP |
3.5 |
Rated temperature outlet |
55℃ |
Maxt temperature outlet |
60℃ |
Power supply |
220-240/1/50/60V/Ph/Hz |
Compressor quantity |
1pcs |
Compressor type |
Panasonic Rotary |
Fan motor quantity |
1pcs |
Fan motor input power |
175W |
Fan speed |
1400RPM |
Air volume |
700M³/h |
Noise |
48dB(A) |
Tank volume |
200L |
Case material |
304 Stainless steel |
Water connections |
G3/4"Inch |
Ambient temperature |
36℃ |
Hot gas defrost |
Yes |
Anodized rod |
Yes |
Electric expansion valve (EEV) |
Yes |
Relieve/safety valve |
Yes |
Additional coil heat exchanger |
Yes |
Unit dimension |
Φ555mm |
1830mm |
|
Packing dimension |
L 625mm |
W 625mm |
|
H 1880mm |
|
Weight |
NW 62kg |
GW 72kg |
|
Container loading qty ( 20GP/40GP/40HQ) |
24/48/48 Pcs |
Measuring conditions |
Dry bulb 20℃ Wet bulb 15℃ |
