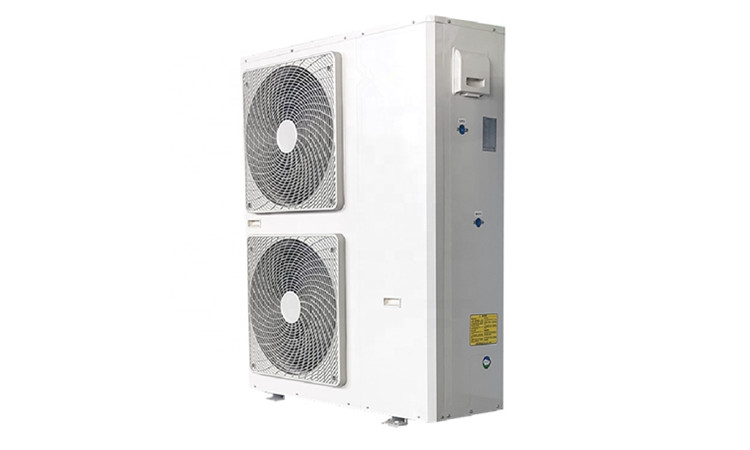

Commercial Domestic Hot Water Heat Pump
Commercial domestic hot water heat pump adopts industry-leading heat
pump technology to provide a more effective way to heat water with electricity.
Hot water heat pump can provide 65°C hot water. It
can operate with an industry-leading 4.2 coefficient of performance (COP). This
will maximize the efficiency and energy saving of the heat pump.
The hot water heat pump draws heat energy from the ambient air, which
can save 60%-75% of energy costs compared with electric water heaters. At the
same time reduce greenhouse gas emissions.
Whether it is a shower in a gym, hotel bathroom and kitchen, or
countless uses in medical institutions, commercial domestic hot water heat pump
can give you the perfect solution.
Commercial Domestic Hot Water Heat Pump Features:
1). The reliability and outstanding performance of the world-renowned scroll compressor
2). Efficient and environmentally friendly R134A, R417A or R407C refrigerants, which do not destroy the ozone layer
3). Intelligent control: microprocessor digital controller with liquid crystal display
4). Adjustable water temperature: 25℃-60℃. No potential risk of contaminating drinking water
5). Blue hydrophilic aluminum fins, anti-corrosion, durable, low maintenance
6). Multiple protections to protect the compressor and heat exchanger
7). Internally threaded copper tube, higher efficiency
8). The four-way valve ensures reliable defrosting function
9). Alco or Danfoss thermal expansion valve can more accurately control pressure and temperature to ensure anti-fatigue and prolong service life.
10) Water heat exchanger: Shell-and-tube type is used for circulating heating models, and tube-in-tube type is used for direct heating models.
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Commercial Domestic Hot Water Heat Pump Specifications:
Power range: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.
Model |
LM050V2 |
Power supply |
220-240/50/1 V/Hz/Ph |
Max. heating capacity(1) |
16.5KW |
C.O.P(1) |
4.48W/W |
Heating capacity Min/Max.(1) |
7.59 /16.5KW |
Heating power input Min/Max.(1) |
1353/3683W |
COP Min./Max.(1) |
4.48/5.6W/W |
Max. heating capacity(2) |
15.5KW |
C.O.P (2) |
3.58W/W |
Heating capacity Min/Max.(2) |
7.13 /15.51KW |
Heating power input Min/Max.(2) |
1676/4328W |
COP Min./Max.(2) |
3.58/4.26WW |
Max. cooling capacity(3) |
14.7KW |
E.E.R(3) |
3.48W/W |
Max. cooling capacity(3) |
6.78/14.73KW |
Cooling power input Min/Max.(3) |
1625/4953W |
E.E.R Min./Max. (3) |
2.97/4.17W/W |
Max. cooling capacity(4) |
11.6KW |
E.E.R(4) |
2.61W/W |
Max. cooling capacity(4) |
5.35/11.63KW |
Cooling power input Min/Max.(4) |
1458/4601W |
E.E.R Min./Max. (4) |
2.53/3.67W/W |
Rate current |
17.6A |
Max current |
25.55A |
Compressor |
Twin rotary-1 |
Fan Quantity |
2Pcs |
Fan Airflow |
5000m3/h |
Fan Rated power |
200W |
Water side heat exchanger |
Plate heat exchanger |
Water pressure drop |
23KPA |
Piping connection |
G1"Inch |
Allowable water flow Min./Rated /Max |
0.49/0.79/1.31L/S |
Noise level |
62dB(A) |
Net Dimension (L*D*H) |
1100*490*1350 mm |
Net Weight |
124KG |
