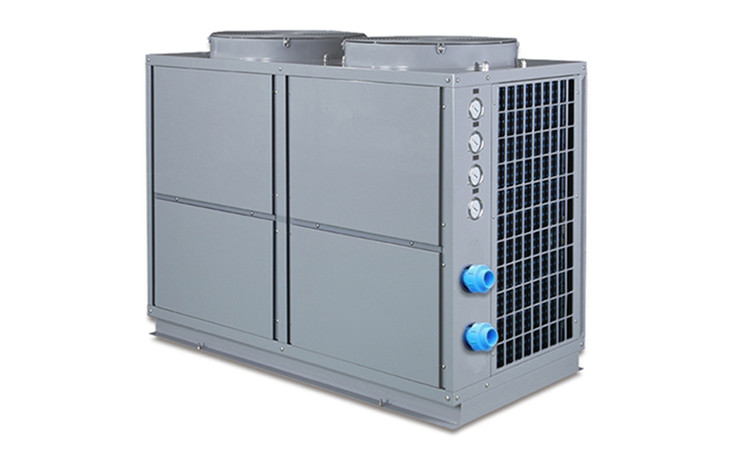

Commercial Heat Pump Water Heater

Commercial Heat Pump Water Heater is a water heater that provides sanitary hot water for commercial establishments. It is widely used in restaurants, schools, hospitals, hotels, retail buildings and other commercial places that need hot water.


The heat pump has a high COP of 4.2. It runs extremely efficiently. Compared with electric water heaters, it can save 60%-75% of energy costs.


The air source heat pump absorbs heat from the air to heat hot water, so it will minimize your greenhouse gas emissions.


The double-wall vented condenser used in heat pump water heaters is safe for drinking water (sanitary) domestic water systems, and completely isolates the refrigerant from the water system.


Hot Water Heat Pumps Features:

1). The reliability and outstanding performance of the world-renowned scroll compressor
2). Efficient and environmentally friendly R134A, R417A or R407C refrigerants, which do not destroy the ozone layer
3). Intelligent control: microprocessor digital controller with liquid crystal display
4). Adjustable water temperature: 25℃-60℃. No potential risk of contaminating drinking water
5). Blue hydrophilic aluminum fins, anti-corrosion, durable, low maintenance
6). Multiple protections to protect the compressor and heat exchanger
7). Internally threaded copper tube, higher efficiency
8). The four-way valve ensures reliable defrosting function
9). Alco or Danfoss thermal expansion valve can more accurately control pressure and temperature to ensure anti-fatigue and prolong service life.
10) Water heat exchanger: Shell-and-tube type is used for circulating heating models, and tube-in-tube type is used for direct heating models.

Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence


Commercial Heat Pump Water Heater Specifications:

1.14kW, 27kW, 41kW, 49kW and 95kW.


Model
LM050V2
Power supply

220-240/50/1

V/Hz/Ph

Max. heating

capacity(1)

16.5KW
C.O.P(1)
4.48W/W

Heating capacity

Min/Max.(1)

7.59 /16.5KW

Heating power

input Min/Max.(1)

1353/3683W
COP Min./Max.(1)
4.48/5.6W/W
Max. heating capacity(2)
15.5KW
C.O.P (2)
3.58W/W

Heating capacity

Min/Max.(2)

7.13 /15.51KW

Heating power

input Min/Max.(2)

1676/4328W
COP Min./Max.(2)
3.58/4.26WW
Max. cooling capacity(3)
14.7KW
E.E.R(3)
3.48W/W
Max. cooling capacity(3)
6.78/14.73KW

Cooling power

input Min/Max.(3)

1625/4953W
E.E.R Min./Max. (3)
2.97/4.17W/W
Max. cooling capacity(4)
11.6KW
E.E.R(4)
2.61W/W
Max. cooling capacity(4)
5.35/11.63KW

Cooling power

input Min/Max.(4)

1458/4601W
E.E.R Min./Max. (4)
2.53/3.67W/W
Rate current
17.6A
Max current
25.55A
Compressor
Twin rotary-1
Fan Quantity
2Pcs
Fan Airflow
5000m3/h
Fan Rated power
200W

Water side

heat exchanger

Plate heat exchanger
Water pressure drop
23KPA
Piping connection
G1"Inch

Allowable water flow

Min./Rated /Max

0.49/0.79/1.31L/S
Noise level
62dB(A)

Net Dimension

(L*D*H)

1100*490*1350

mm

Net Weight
124KG
