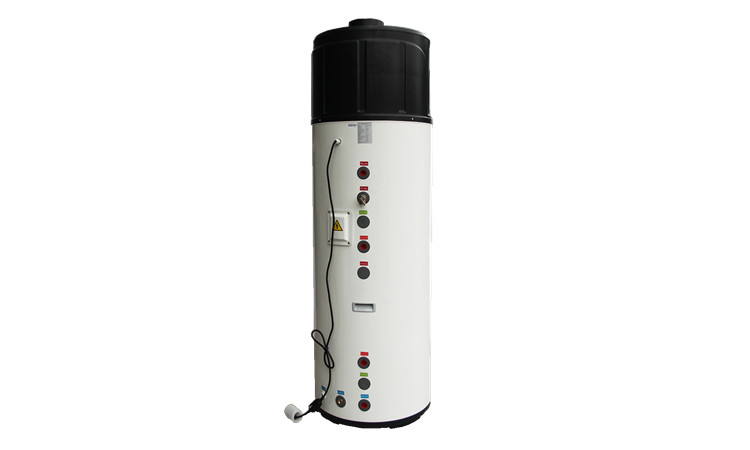

Electric Heat Pump Water Heaters
Electric heat pump water heaters are the most efficient water tank water
heaters on the market. The hybrid heat pump series is designed to use your
home’s electricity and heat pump technology to provide low-cost hot water.
Heat pump water heaters can greatly reduce carbon emissions while using
3.5-6 times less energy than gas water heaters.
How does it work?
The heat pump works on the same principle as the refrigerator, but
instead of extracting heat from the refrigerator to keep it cool, it pumps heat
into the water. Electricity is used to pump refrigerant through the system. The
refrigerant transfers the heat absorbed by the air to the water in the water
tank.
Electric Heat Pump Water Heaters Features:
1. Save money and energy
Save up to $480 in energy costs per year—almost $5,000 in 10 years!
2. Energy-saving scheduling
Program the water heater to meet your needs throughout the day-increase
production during high usage hours (such as morning), and reduce production
when no one is at home to save energy
3. Set vacation or leave mode
Reduce the cost of hot water when you’re out for a week or only one
day-even if you are away from home, you can easily set it up with your phone
4. Built-in WiFi technology
Adjust water temperature, track energy usage and set operating
modes-everything is done with your smartphone
5. Automatic water shutoff valve
Use this leak detection and prevention system to limit leaks to no more
than 20 ounces and protect your home from water damage
6. Reduce carbon footprint
Uses 75% less energy than standard electric water heaters 8 Helps
minimize the impact on the environment-4 times the efficiency of standard
electric water heaters
7. Heat pump technology
Extract heat energy from the surrounding air to heat your water, making
it the most efficient water heater on the market 9? Up to 4.0 UEF
8. Energy usage tracking
View weekly, monthly and yearly energy usage reports through your mobile
phone to help you better manage energy consumption
9. Operation mode and scheduling
Arrange set points and choose from five operating modes to adapt to your
lifestyle through the EcoNet app: energy saving, heat pump, electricity, high
demand, vacation
10. Advanced diagnosis
Plumbers can view detailed alarms and alarm codes through smart apps
next to the water heater to speed up service10
Electric Heat Pump Water Heaters Specifications:
Storage capacity: 100L, 200L, 250L, 300L, 500L, etc.
Model |
LM-200TB1 |
Hot Water Temperature |
15℃ to 55℃ |
Heating Capacity(kW) |
2.2 |
Power Input(kW) |
0.53 |
COP |
4.16 |
Max Power Input(kW) |
3000 |
Rated Current(A) |
2.9 |
Max Current(A) |
15 |
Power Supply |
220V~50Hz |
Backup Electric Heater(W) |
2000 |
Refrigerant |
R410a |
Net Dimension(mm) |
Φ620×1750 |
Package Dimension(mm) |
700×700×1930 |
Net Weight(Kg) |
105 |
Gross Weight(Kg) |
115 |
Noise(dB) |
48 |
Water tank volume(L) |
200 |
Working temperature range(℃) |
-15~43 |
