Geothermal Heat Pumps for Homes

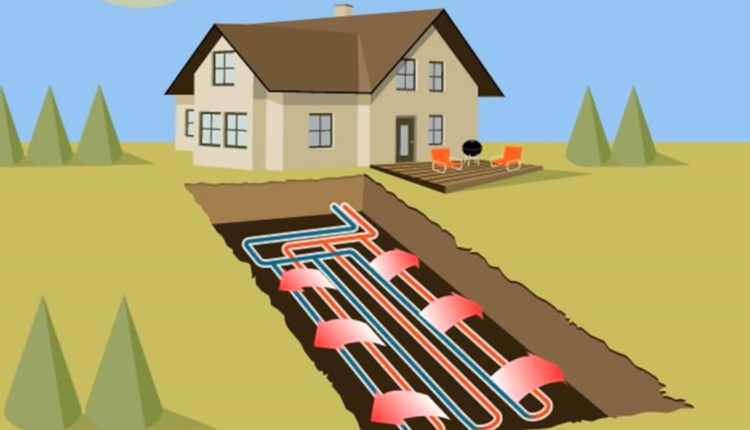

The geothermal heat pump system uses the energy of your own
backyard-transfer heat into or out of the earth to heat or cool your home.
Regardless of the weather outside, geothermal heat pumps can provide
energy-saving performance and provide the most comfortable indoor comfort for
your home.
The ground source heat pump (GSHP) device is the most efficient heating
and cooling system with an efficiency of up to 300%. Using it will help you
save up to 70% of the cost.
Geothermal Heat Pumps are the best environmentally friendly heating system. It will help you greatly reduce your carbon emissions.
Advantages of Geothermal Heat Pumps for Homes:
1. The heat delivered by the ground source heat pump to the property is approximately three times the energy extracted from the ground.
2. Ground source heat pumps are very suitable for properties that cannot use natural gas
3. Ground source heat pumps are very suitable for real estate with large tracts of land.
4. The ground source heat pump is very quiet, no noise when working
Ground Source Heat Pump Features :
1). The reliability and outstanding performance of the world-renowned scroll compressor
2). Efficient and environmentally friendly R134A, R417A or R407C refrigerants, which do not destroy the ozone layer
3). Intelligent control: microprocessor digital controller with liquid crystal display
4). Adjustable water temperature: 25℃-60℃. No potential risk of contaminating drinking water
5). Blue hydrophilic aluminum fins, anti-corrosion, durable, low maintenance
6). Multiple protections to protect the compressor and heat exchanger
7). Internally threaded copper tube, higher efficiency
8). Alco or Danfoss thermal expansion valve can more accurately control pressure and temperature to ensure anti-fatigue and prolong service life.
9) Safety: Water and electricity are completely isolated, and there are no potential hazards such as flammability, gas poisoning, explosion, fire, electric shock, etc. related to other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Heat Pump Components:
1. Silver welding
Silver welding technology makes the unit system more reliable; it is likely to avoid refrigerant leakage
2. Intelligent control
The unit adopts an intelligent control system: microprocessor digital controller, liquid crystal display
3. Shell and tube
Heat Exchanger High-efficiency shell-and-tube water heat exchanger, the highest working water pressure can reach 3.2Mpa
3. Reliability of Alco thermal expansion valve
4. Efficient and environmentally friendly refrigerant, does not destroy the ozone layer
5. Low noise fan
Axial fan is adopted, with large air volume and low operating noise
6. Air pressure drive water flow control valve
The water flow is controlled by the pressure of the refrigerant to ensure that the hot water supply can be adjusted at a constant temperature
Geothermal Heat Pumps Specifications:
Power capacity: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.
Product model |
LM020-DFXRS-S |
Heating capacity |
8.2kw |
Input power |
1.9kw |
Rated current |
2.5A |
COP |
4.32 |
Rated outlet hot water temperature |
55℃ |
Highest outlet hot water temperature |
60℃ |
Production capacity |
176L/H |
Hot water Pipe size |
DN20mm |
Heat source inlet water temperature |
15℃ |
Heat source outlet water temperature |
10℃ |
Heat source circulation water capacity |
2000L/H |
Heat source pipe size |
DN20mm |
IP Grade (Level of protection) |
IPX4 |
Anti-electric shock Rate |
I |
Noise |
≤48dB(A) |
Net weight |
80kg |
Gross weight |
85kg |
Metel plate |
Galvanized steel/Spray/Gray |
Body size(W*D*H) |
650*450*650 |
Packing size(W*D*H) |
750*550*850 |
Loading quantity (20GP/40GP/40HQ) |
60/120/180 |
Compressor |
Panasonic |
Refrigerant |
R410A |
Power supply |
220V/50Hz |
Condenser |
Plate |
Evaporator |
Plate |
Expansion valve |
Danfoss /Emerson |
AC contactor |
(220V-18A) |
Thermorelay |
(12-18A)*1 |
Controller |
DF1SS-TS5(Motorola Chip) |
Low-voltage switch |
0.15/0.32MPa |
High-voltage switch |
3.0/3.6MPa |
Power line connect with unit |
3*2.5mm |
Package |
Polywood packing |
