Ground Source Heat Pump Buy

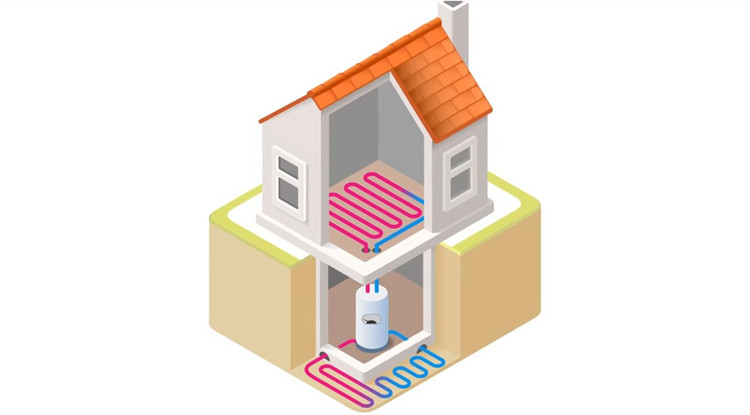

Ground source heat pump (GSHP) is an energy-saving renewable energy
solution, especially suitable for larger plots of real estate. It allows you to
enjoy economical heating, hot water and cooling systems.
The ground source heat pump (GSHP) has an efficiency of up to 400% and
extracts free heat from the ground for heating and hot water. GSHP can help
reduce your carbon footprint and can even lower your energy bills.
In addition to providing warmth in colder weather, these solutions can
also work in reverse when the outdoor is hot and provide cool air to help your
home maintain a comfortable temperature throughout the year.
Ground Source Heat Pump Features :
1). The reliability and outstanding performance of the world-renowned scroll compressor
2). Efficient and environmentally friendly R134A, R417A or R407C refrigerants, which do not destroy the ozone layer
3). Intelligent control: microprocessor digital controller with liquid crystal display
4). Adjustable water temperature: 25℃-60℃. No potential risk of contaminating drinking water
5). Blue hydrophilic aluminum fins, anti-corrosion, durable, low maintenance
6). Multiple protections to protect the compressor and heat exchanger
7). Internally threaded copper tube, higher efficiency
8). Alco or Danfoss thermal expansion valve can more accurately control pressure and temperature to ensure anti-fatigue and prolong service life.
9) Safety: Water and electricity are completely isolated, and there are no potential hazards such as flammability, gas poisoning, explosion, fire, electric shock, etc. related to other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Ground Source Heat Pump Specifications:
Power capacity: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.
Product model |
LM020-DFXRS-S |
Heating capacity |
8.2kw |
Input power |
1.9kw |
Rated current |
2.5A |
COP |
4.32 |
Rated outlet hot water temperature |
55℃ |
Highest outlet hot water temperature |
60℃ |
Production capacity |
176L/H |
Hot water Pipe size |
DN20mm |
Heat source inlet water temperature |
15℃ |
Heat source outlet water temperature |
10℃ |
Heat source circulation water capacity |
2000L/H |
Heat source pipe size |
DN20mm |
IP Grade (Level of protection) |
IPX4 |
Anti-electric shock Rate |
I |
Noise |
≤48dB(A) |
Net weight |
80kg |
Gross weight |
85kg |
Metel plate |
Galvanized steel/Spray/Gray |
Body size(W*D*H) |
650*450*650 |
Packing size(W*D*H) |
750*550*850 |
Loading quantity (20GP/40GP/40HQ) |
60/120/180 |
Compressor |
Panasonic |
Refrigerant |
R410A |
Power supply |
220V/50Hz |
Condenser |
Plate |
Evaporator |
Plate |
Expansion valve |
Danfoss /Emerson |
AC contactor |
(220V-18A) |
Thermorelay |
(12-18A)*1 |
Controller |
DF1SS-TS5(Motorola Chip) |
Low-voltage switch |
0.15/0.32MPa |
High-voltage switch |
3.0/3.6MPa |
Power line connect with unit |
3*2.5mm |
Package |
Polywood packing |
