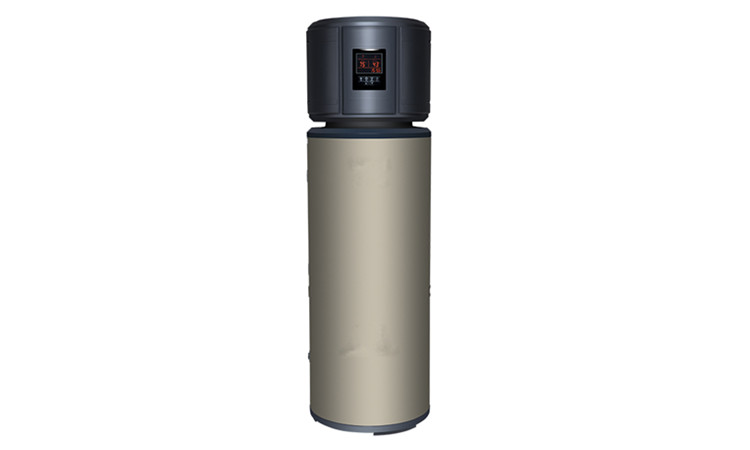

Heat Pump Water Cylinders for Home
Heat pump water cylinders transfer heat from the ambient heat in the air
to the hot water tank. Heat Pump Water Cylinders is a perfect energy-saving hot
water heating solution for home.
Heat pump water cylinders have higher efficiency, and the power
consumption is about 1/3 of that of traditional electric water heaters. Save
you up to 2/3 of the cost of hot water energy.
The heat pump uses ambient heat from the atmosphere as its main energy
source, which will greatly reduce your carbon emissions.
The heat pump water cylinders can be operated at temperatures ranging
from -7 °C to 45 °C. Regardless of the weather, it can effectively provide you
with hot water.
The Working Principle of Heat Pump Water Cylinders:
1. The fan draws in air containing heat energy through the evaporator
2. The evaporator turns the liquid refrigerant into a gaseous state
3. The compressor pressurizes the refrigerant into hot gas
4. The hot air in the condenser coil heats the water in the coil water
tank
5. The refrigerant changes back to liquid after heating the water and
continues to enter the evaporator to restart the process
Heat Pump Water Cylinders for Home Features:
1. Microprocessor-based digital controller with LCD display
2. Hot water temperature setting: 30-60°C There is no potential risk of contaminating drinking water
3. High-efficiency rotary compressor ensures quiet operation
4. R134A or R410A refrigerant without CFC, does not destroy the ozone layer
5. Energy saving, operating cost is only 1/3 of traditional electric water heater
6. The four-way valve ensures reliable defrosting function
7. Easy to install: easy installation by plumber or electrician, no need for professional refrigeration engineer
8. Simple operation: operate like a simple household appliance
9. Alco or Danfoss thermal expansion valve, to more accurately control pressure and temperature to ensure fatigue resistance, thereby prolonging the service life.
10. Safety: water and electricity are completely isolated, no potential hazards such as flammability, gas poisoning, explosion, fire, electric shock, etc. are associated with other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Heat Pump Components:
1.Silver welding
Silver welding technology makes the unit system more reliable; it is likely to avoid refrigerant leakage
2. Intelligent control
The unit adopts an intelligent control system: microprocessor digital controller, liquid crystal display
3. Efficient and environmentally friendly refrigerant, does not destroy the ozone layer
4. Low noise fan
Use axial flow fan, with large air volume and low operating noise
5. Low noise and high efficiency, world-famous compressor
6. Enamel water tank
Ensure high corrosion resistance even in hard water at a pressure of 7 bar
Heat Pump Water Cylinders Specificaitons:
Storage capacity: 100L, 200L, 250L, 300L, 500L, etc.
Model |
FAR-01(200L) |
Heating capacity |
3.5kw |
Water tank capacity |
200 L |
Heating power input |
0.91kw |
Operating current |
3.68A |
COP A20/W55 |
3.75 |
Power supply |
220~240V/1Ph/ 50Hz/60hz |
Compressor brand |
Hitachi / Rotary |
Refrigerant |
R410a / R407c |
Controller |
lcd digital |
Type of defrosting |
Reverse circulation |
Max.water temperature |
60 ℃ |
Rated water temperature |
55 ℃ |
Electrical heater |
1.5kw |
Hot water supply (L/H - from 15°C to 55°C) |
75L |
Sound level |
47 dB(A) |
Net weight |
80 kg |
Shipping weight |
92 kg |
Net dimensions |
560*560*1730 |
Shipping dimensions |
670*670*1860 |
Qty/20GP |
24 pcs |
Qty/40GP |
48 pcs |
