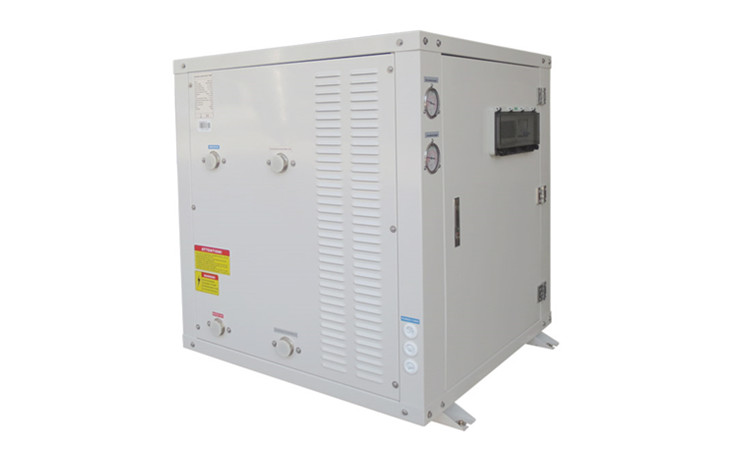

High Temperature Ground Source Heat Pump

The high temperature ground source heat pump can absorb heat from the earth to heat hot water. Its outlet water temperature is as high as 70ºC, which is 100% sufficient for household heating and hot water without supplementary heating.

Heat pumps are more effective than gas boilers. The efficiency of a gas boiler is about 95%, and the efficiency of a heat pump may exceed 400%, so for every unit of electricity used, about four units of heat are generated and used.

Unlike boilers, which can only heat your house, the heat pump system can also work in reverse to cool your house.

The high-temperature heat pump uses a single-phase power supply, making it suitable for installation in a home. It is also suitable for light commercial applications with low heat load requirements (ie up to 11W). You can also install multiple heat pumps.

High Temperature Ground Source Heat Pump Features:

1). The reliability and outstanding performance of the world-renowned scroll compressor

2). Efficient and environmentally friendly R134A, R417A or R407C refrigerants, which do not destroy the ozone layer

3). Intelligent control: microprocessor digital controller with liquid crystal display

4). Adjustable water temperature: 25℃-60℃. No potential risk of contaminating drinking water

5). Blue hydrophilic aluminum fins, anti-corrosion, durable, low maintenance

6). Multiple protections to protect the compressor and heat exchanger

7). Internally threaded copper tube, higher efficiency

8). Alco or Danfoss thermal expansion valve can more accurately control pressure and temperature to ensure anti-fatigue and prolong service life.

9) Safety: Water and electricity are completely isolated, and there are no potential hazards such as flammability, gas poisoning, explosion, fire, electric shock, etc. related to other heating systems

Warranty:

1). Passed CE and RoHS certification

2). Service life is about 20 years

3). 2 years warranty, buy with confidence

Heat Pump Components:

1. Silver welding

Silver welding technology makes the unit system more reliable; it is likely to avoid refrigerant leakage

2. Intelligent control

The unit adopts an intelligent control system: microprocessor digital controller, liquid crystal display

3. Shell and tube

Heat Exchanger High-efficiency shell-and-tube water heat exchanger, the highest working water pressure can reach 3.2Mpa

3. Reliability of Alco thermal expansion valve

4. Efficient and environmentally friendly refrigerant, does not destroy the ozone layer

5. Low noise fan

Axial fan is adopted, with large air volume and low operating noise

6. Air pressure drive water flow control valve

The water flow is controlled by the pressure of the refrigerant to ensure that the hot water supply can be adjusted at a constant temperature

High Temperature Ground Source Heat Pump Specifications:

Power capacity: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.

Product model	LM020-DFXRS-S
Heating capacity	8.2kw
Input power	1.9kw
Rated current	2.5A
COP	4.32
Rated outlet hot water temperature	60℃
Highest outlet hot water temperature	70℃
Production capacity	176L/H
Hot water Pipe size	DN20mm
Heat source inlet water temperature	15℃
Heat source outlet water temperature	10℃
Heat source circulation water capacity	2000L/H
Heat source pipe size	DN20mm
IP Grade (Level of protection)	IPX4
Anti-electric shock Rate	I
Noise	≤48dB(A)
Net weight	80kg
Gross weight	85kg
Metel plate	Galvanized steel/Spray/Gray
Body size(WDH)	650450650
Packing size(WDH)	750550850
Loading quantity (20GP/40GP/40HQ)	60/120/180
Compressor	Panasonic
Refrigerant	R410A
Power supply	220V/50Hz
Condenser	Plate
Evaporator	Plate
Expansion valve	Danfoss /Emerson
AC contactor	(220V-18A)
Thermorelay	(12-18A)*1
Controller	DF1SS-TS5(Motorola Chip)
Low-voltage switch	0.15/0.32MPa
High-voltage switch	3.0/3.6MPa
Power line connect with unit	3*2.5mm
Package	Polywood packing
