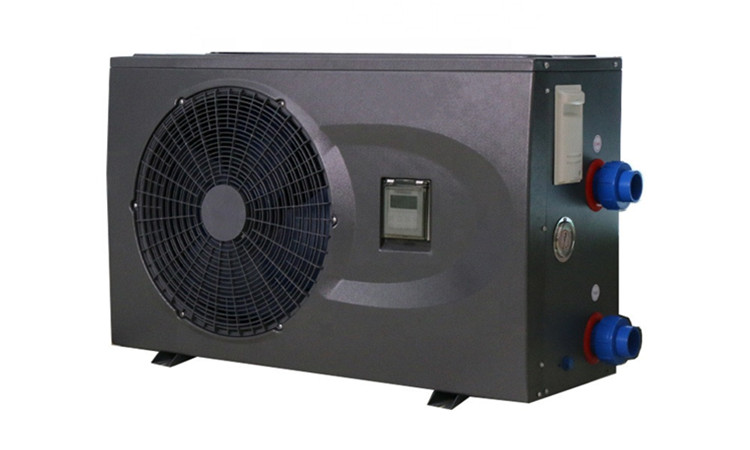

Inverter Air Source Heat Pump Swimming Pool
The air source heat pump heats the pool by "releasing" heat from the fresh air around it. It is an efficient, economical and "green" heating method.
The air source swimming pool heat pump can heat the swimming pool in winter. It cools the pool in summer. The use of inverters makes the heat pump work shorter.
The maximum COP of the inverter pool heat pump series is 13, which means that for every 1 kW of energy consumed, up to 13 kW of heat will be transferred to your pool. The inverter technology avoids the power waste of the fixed-speed motor, increases the energy efficiency of the inverter heat pump by 30%, and runs quieter.
Inverter air source heat pump swimming pool Features:
1. Copeland scroll compressor has high efficiency, low noise and long life.
2. Working air temperature range: -10℃ to 45℃
3. Titanium material, corrosion resistant, specially used for swimming pool water.
4. The electronic expansion valve automatically adjusts the refrigerant flow.
5. Galvanized steel sheet, beautiful and corrosion-resistant.
6. Built-in Wi-Fi module.
7. Set and check all parameters, if the heat pump fails, it will protect itself.
8. The heat pump uses environmentally friendly refrigerants: R417A / R407C / R404A.
9. The heat pump is small, so ordinary plumbers can easily install it.
10. Precise temperature control
Inverter air source heat pump swimming pool specifications:
-Heat output: 5.5kw, 7.5kw, 11kw, 14.3kw, 17.5kw, 20.4kw and 25.5kw
-Voltage/phase/frequency: 220-240V / 1PH / 50HZ
-Toshiba rotary compressor
-Digital LCD controller
-Water flow rate: 3-3.5 m3 / h
-Maximum water output temperature: 40ºC
-Sound level: 48 dB (A)
-Water connection: 2 inches
Heat Pump Key Componets:
Smart control: microprocessor-based digital controller with LCD display digital controller
American Compressor: Copeland Scroll has high working efficiency.
Japan Saginomiya four way control valve: No back flow and block.
Axial Fans: high wind and low noise
Eco-friendly Refrigerant: without ozone depletion
PVC Titanium Heat Exchanger: resistance to chemical corrosion and pool corrosion
Swimming Pool Heat Pumps Warranty:
1. Heat Pumps have CE and RoHS certificates.
2. 1 year warranty for Swimming Pool Heat Pumps
3.1% spare parts are repaired free of charge.
Leomon Technology provides customized services. We can design and produce Inverter air sourc swimming pool heat pumps according to customer's requirements for shape and parameters.
Inverter Air Source Heat Pump Swimming Pool Applications:
Inverter Air Source Heat Pump Swimming Pool Installations:
Inverter Air Source Heat Pump Swimming Pool Diagram:
