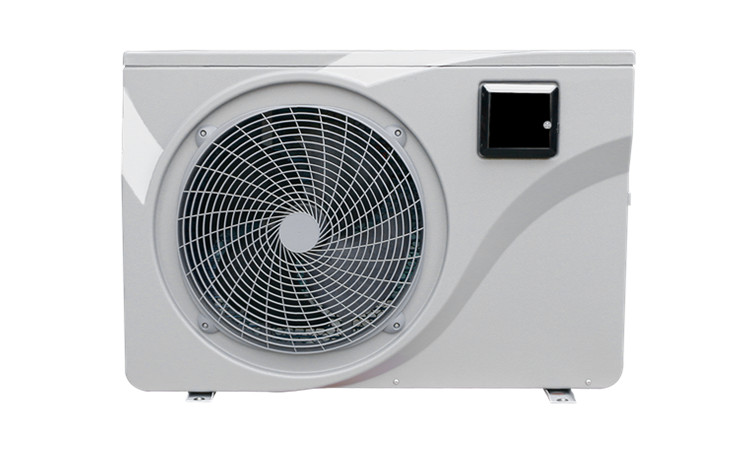

Inverter Pool Heat Pump Prices
The inverter pool heat pump system can control the speed of the
compressor and fan motors to achieve the best performance. It can help your
swimming pool achieve rapid heating and precise temperature control, while
achieving the best energy-saving effect.
Using DC inverter technology, the COP can reach 13.5 at 26℃/23.3℃ (DB/WB). During 95% of the pool
season, the heat pump runs at about 50% of its capacity, which results in an
average COP of 9. With high COP, it can help users reduce energy costs by 50%.
With DC inverter technology, the heat pump runs at low speed most of the
time. The sound level of the dc inverter swimming pool heat pump at 1m is as
low as 40dB(A), which is 10dB(A) lower than the traditional On/Off swimming
pool heat pump.
Inverter Pool Heat Pump Features :
1) PVC titanium heat exchanger, full corrosion resistance, more durable, low maintenance.
2) Inverter technology-variable operating speed
3) Using R32 refrigerant, high efficiency and environmental protection, no carbon dioxide emissions.
4) Compact structure, easy to disassemble and assemble.
5) Excellent COP-from 6.4 to 16.0 due to inverter technology
6) LCD touch screen controller, mobile phone Wifi control.
7) Air exchanger (finned coil) with hydrophilic coating.
8) Including automatic defrost function. (There is a reverse circulation valve inside)
9) Flow switch and high pressure cut off to ensure extra safety and protection
10) Low noise brushless fan motor
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Inverter Pool Heat Pump Specifications:
Power range: 3kw, 5kw, 7kw, 9kw, 10kw, 14kw, 15kw, 16kw, 20kw, 27kW, 41kW, 49kW, 95kW and 115kW, etc
Product model |
LM06-DC |
Advised pool volume(m3) (with cover) |
10-25 |
Heating capacity (kW) |
6.2-2.5 |
Heating capacity (BTU/h) |
21143-7843 |
Input power (kW) |
1.09-0.17 |
COP |
5.69-13.5 |
Heating capacity (KW) |
4.8-2.3 |
Heating capacity (BTU/h) |
16369-8526 |
Input power (KW) |
1.04-0.32 |
COP |
4.62-7.14 |
Rated current(A) |
4.4 |
Minimum fuse current (A) |
7 |
Advised water flux(m³/H) |
2.5 |
IP Grade (Level of protection) |
IPX4 |
Anti-electric shock Rate |
I |
Noise (dB(A)) (1m) |
50-40 |
Net weight/Gross weight(kg) |
54/66 |
Diameter of pipe (mm) |
φ50 |
Metel plate |
ABS plastic casing black color |
Body size(W*D*H)mm |
1008×380×577 |
Compressor |
GMCC |
Refrigerant |
R410A |
Power supply |
220V/1p/ 50Hz-60HZ |
Condenser |
Titanium in PVC |
Evaporator |
L-1.5/900*500/φ7 |
Four-way valve |
SHF-4-23U |
Expansion valve |
Sanhua |
Motor |
DC 25W |
Fan |
φ400*1 |
Controller |
Mitsubishi driver |
High-voltage switch |
3.6/4.2MPa |
Power line connect with unit |
3*1.5mm2 |
Package |
wooden package |
