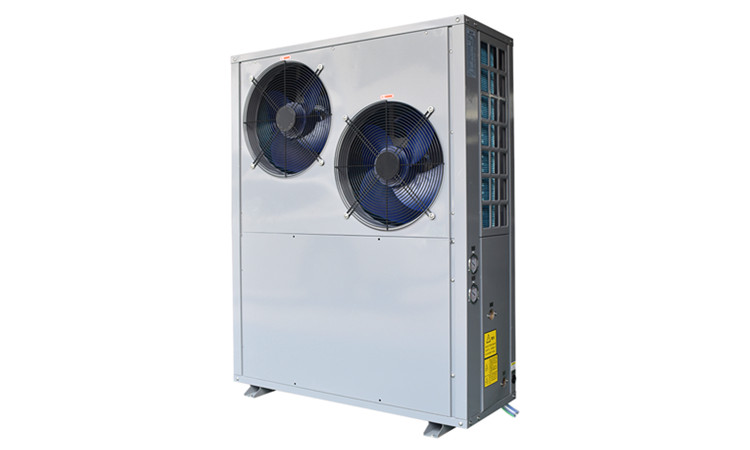

Low Ambient Air to Water Heat Pump Water Heaters
Low ambient air to water heat pump is an energy-saving heating, cooling
and hot water solution. Even in the coldest climate as low as -25 °C (-15F), it
can provide heating for residential and light commercial environments.
When the heat pump is used in combination with floor
heating or low-temperature radiators, this configuration is very suitable for
new houses and requires less energy to heat the home throughout the year.
Heat pumps are powered by 75% renewable energy extracted from the air
and 25% electricity. They meet the A++ energy efficiency label for heating, and
can be combined with solar support to increase hot water savings.
The low ambient air to water heat pump is designed in Europe, suitable
for Europe, and suitable for all European climates throughout the year.
Air to Water Heat Pump Features:
1).EVI compressor is specially designed for high water temperature
2). Intelligent controller, fast microprocessor adjustment
3). Water exchanger with high-efficiency pipes in the shell heat exchanger
4). Multiple protections to protect the compressor and heat exchanger
5). Indoor and outdoor split or integrated design, easy to install
6). Including automatic defrost function (with reverse valve inside)
7). It can be used for floor heating, fan coils, water heaters and modern radiators
8). The perfect defrosting system allows the unit to work at an ambient temperature of -20 degrees Celsius
9). R417a or R407c refrigerant, environmental protection-green energy, no CO2 emissions
10). Safety: Water and electricity are completely isolated, and there are no potential hazards such as flammable, gas poisoning, explosion, fire, electric shock, etc. related to other heating systems
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
Low Ambient Air to Water Heat Pump Specifications:
Power capacity: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.
Model |
LM030V2LS |
Power Supply |
220V~240V/50Hz or 60Hz/1ph |
Refrigerant |
R410A |
Heating Capacity |
9.6KW |
Input Power |
2.157KW |
COP |
4.45 |
Cooling capacity |
7.9KW |
Input power of cooling |
2.688KW |
EER |
3.50 |
Rated current |
10.3A |
Fan motor power |
100W |
Fan motor quantity |
2Pcs |
Water Flow |
0.29~0.76L/s |
Water Pressure Drop |
≤20Kpa |
Net Weight |
112kg |
Gross Weight |
156kg |
Noise |
59db |
Waterproof Grade |
IPX4 |
Electric Shock Proof Grade |
I |
Pipe Size (internal thread) |
25mm |
Expansion Tank |
5L |
Electric Heate |
3KW |
Grundfos Inverter Pump |
UPMGEO 25-85-130 |
Outdoor Unit Size(L×D×H) |
1100*490*810mm |
Indoor Unit Size(L×D×H) |
550*325*650mm |
