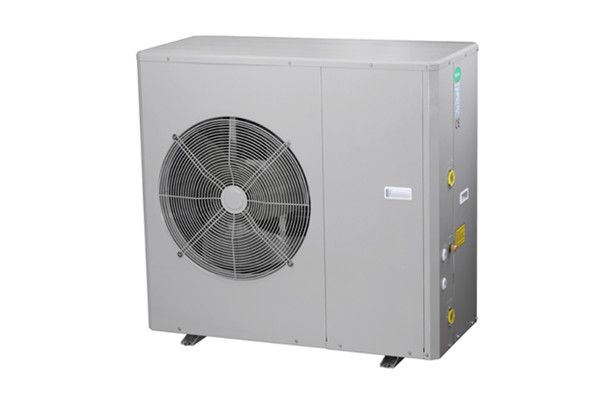

Monobloc Heat Pump Price

Monobloc heat pumps collect heat from outside air and transfer it to hot water before flowing into your home or business. These air-to-water heat pumps are usually paired with indoor distributors and water heating cylinders or combined packaged water heating cylinders.


This heat pump runs using R32, which is a more environmentally friendly refrigerant that can provide better working response, improved performance, lower load and reach 65°C, which is the ideal temperature for sanitary production of hot water.


The heat pump can operate efficiently even when the outdoor temperature is as low as -25°C.


Main features of Monobloc Heat Pump:

– Stand-alone device, only water and electricity connections are required

– No need for air supply, flue or ventilation

– Single-phase power supply, low starting current (3 phases can be used for 14kW)

– Low maintenance and quiet operation

– Can operate at outdoor temperatures as low as -25°C

– Multi-unit connection

– Hybrid function for traditional boilers

– Zone 2 energy-saving space heating control

– Available as a stand-alone, complete or semi-complete system

– Standard energy monitoring

– Provide coastal protection model (-BS)


Warranty:

1. CE & RoHS approval.

2. 2 years warranty


Monobloc Heat Pump Specifications:

1. Service life: 20 years

2. Power range: 3kw, 5kw, 7kw, 9kw, 10kw, 14kw, 15kw, 16kw, 20kw, 27kW, 41kW, 49kW, 95kW and 115kW, etc


Model
LM050V2
Power supply

220-240/50/1

V/Hz/Ph

Max. heating

capacity(1)

16.5KW
C.O.P(1)
4.48W/W

Heating capacity

Min/Max.(1)

7.59 /16.5KW

Heating power

input Min/Max.(1)

1353/3683W
COP Min./Max.(1)
4.48/5.6W/W
Max. heating capacity(2)
15.5KW
C.O.P (2)
3.58W/W

Heating capacity

Min/Max.(2)

7.13 /15.51KW

Heating power

input Min/Max.(2)

1676/4328W
COP Min./Max.(2)
3.58/4.26WW
Max. cooling capacity(3)
14.7KW
E.E.R(3)
3.48W/W
Max. cooling capacity(3)
6.78/14.73KW

Cooling power

input Min/Max.(3)

1625/4953W
E.E.R Min./Max. (3)
2.97/4.17W/W
Max. cooling capacity(4)
11.6KW
E.E.R(4)
2.61W/W
Max. cooling capacity(4)
5.35/11.63KW

Cooling power

input Min/Max.(4)

1458/4601W
E.E.R Min./Max. (4)
2.53/3.67W/W
Rate current
17.6A
Max current
25.55A
Compressor
Twin rotary-1
Fan Quantity
2Pcs
Fan Airflow
5000m3/h
Fan Rated power
200W

Water side

heat exchanger

Plate heat exchanger
Water pressure drop
23KPA
Piping connection
G1"Inch

Allowable water flow

Min./Rated /Max

0.49/0.79/1.31L/S
Noise level
62dB(A)

Net Dimension

(L*D*H)

1100*490*1350

mm

Net Weight
124KG
