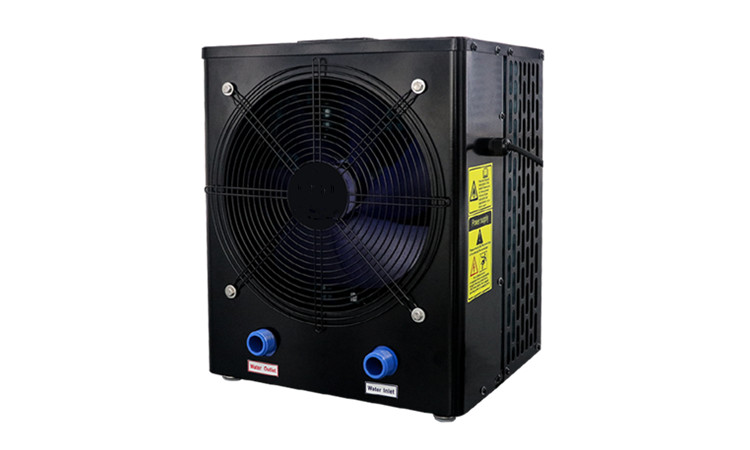

Swimming Pool Heat Pump Above Ground Pool Heaters

The swimming pool heat pump above ground series are suitable in size and suitable for small swimming pools with a capacity of up to 13,000 gallons. The swimming pool heat pump adopts a vertical or horizontal structure, which is very energy-efficient and is designed to provide year-round swimming pool comfort.


Using a heat pump to heat your swimming pool will provide you with the lowest operating costs. The pool heat pump does not generate heat, it just captures heat from the air and transfers it to evenly heat your above-ground swimming pool.


The swimming pool heat pump uses 1 kilowatt of electricity to output approximately 5 kilowatts of heat to your swimming pool. Compared with gas heaters, pool heat pumps can save up to 80% of energy costs.


The swimming pool heat pump above ground series is very compact and easy to install. It is suitable for all types of above-ground pools, such as wooden, plastic and metal frame pools.


Swimming Pool Heat Pump Above Ground Pool Heaters Features :

1) PVC titanium heat exchanger, full corrosion resistance, more durable, low maintenance.

2) Compact structure, easy to disassemble and assemble.

3) Using R410a or R407c refrigerant, high efficiency and environmental protection, no carbon dioxide emissions.

4) Heating and cooling dual function

5) Electronic Expansion Valve (EEV2)-Increase energy saving through effective fuel flow

6) LCD touch screen controller, Wifi control.

7) Air exchanger (finned coil) with hydrophilic coating.

8) Including automatic defrost function. (There is a reverse circulation valve inside)

9) Flow switch and high pressure cut off to ensure extra safety and protection

10) Low noise fan blade


Warranty:

1). Passed CE and RoHS certification

2). Service life is about 20 years

3). 2 years warranty, buy with confidence


Swimming Pool Heat Pump Above Ground Specifications:

1. Power range: 3kw, 5kw, 7kw, 9kw, 10kw, 14kw, 15kw, 16kw, 20kw, 27kW, 41kW, 49kW, 95kW and 115kW, etc.


Model
LMP-03
Rated heating capacity
13KW
Rated heating capacity
44369BTU
Rated input power
2.46KW
Rated heating input current
9.8A
COP
5.2KW
Max running current
17.1/11A
Power source
220V/380/50Hz
Noise level
45dB(A)
Width
1000mm
Depth
350mm
Height
620
Weight
110kg
Water temperature control precision
±2℃
Working environment
-15℃~43℃
Throttle type
Electronic expansion valves
Refrigerant Type
R417A, R407C,R410A
Compressor Brand /type
hitachi
Compressor Qty
1Pcs
Heat source side Heat exchange type
Efficient finned tube exchanger
Heat source side Motor power fan type Axial flow fan
Heat source side Motor power
0.1KW
Hot water side Heat exchanger type
High titanium tube heat exchanger
Hot water side Water flow
4.40 m3/h
Hot water side Water pressure drop
20 KPA
Hot water side Connect pipe size
1 and 0.5 Inch
Hot water side Water size max work pressure
600KPA


Choose the best swimming pool heat pump model for the above ground swimming pool:

Max Pool Volume
4.85kw 12m3
6.7kw
20m3
10.10kw
30m3
14.10kw
45m3
