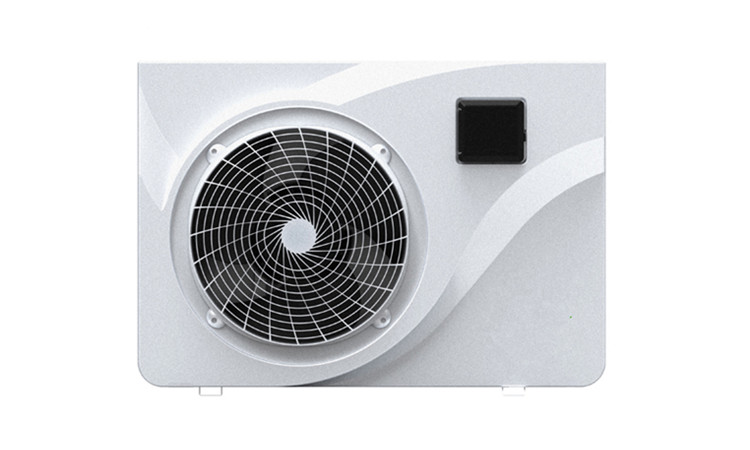

Swimming Pool Heat Pump Manufacturers China
Leomon Technology is one of the most professional swimming pool heat
pump manufacturers in China. The heat pumps we produce have the ultimate
design, high-quality raw materials, high performance and competitive prices. If
you want to buy a swimming pool heat pump, please consult us in time and we
will get back to you in time!
Swimming pool heat pump is currently one of the most efficient,
environmentally friendly and most versatile swimming pool heating solutions.
The heat pump is the best energy-saving solution, and each unit of
electricity consumption can get up to 5.25 units of heat. Compared with gas
heaters, these pool heat pumps can save up to 80% of energy costs.
The pool heat pump is equipped with special winter accessories,
allowing the heat pump to work effectively within the range of -15°. The
swimming pool heat pump can heat the swimming pool in winter. In the hot
summer, a heat pump can cool your swimming pool. Can be used throughout the
year.
The heat pump transfers the heat in the air to the
swimming pool. No fossil fuels are burned in this process. So heat pump heating
is very safe and will reduce your carbon emissions.
Swimming Pool Heat Pump Features :
1) PVC titanium heat exchanger, full corrosion resistance, more durable, low maintenance.
2) Compact structure, easy to disassemble and assemble.
3) Using R410a or R407c refrigerant, high efficiency and environmental protection, no carbon dioxide emissions.
4) Heating and cooling dual function
5) Electronic Expansion Valve (EEV2)-Increase energy saving through effective fuel flow
6) LCD touch screen controller, Wifi control.
7) Air exchanger (finned coil) with hydrophilic coating.
8) Including automatic defrost function. (There is a reverse circulation valve inside)
9) Flow switch and high pressure cut off to ensure extra safety and protection
10) Low noise fan blade
Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence
1. Power range: 3kw, 5kw, 7kw, 9kw, 10kw, 14kw, 15kw, 16kw, 20kw, 27kW, 41kW, 49kW, 95kW and 115kW, etc.
Model |
LMP-03 |
Rated heating capacity |
13KW |
Rated heating capacity |
44369BTU |
Rated input power |
2.46KW |
Rated heating input current |
9.8A |
COP |
5.2KW |
Max running current |
17.1/11A |
Power source |
220V/380/50Hz |
Noise level |
45dB(A) |
Width |
1000mm |
Depth |
350mm |
Height |
620 |
Weight |
110kg |
Water temperature control precision |
±2℃ |
Working environment |
-15℃~43℃ |
Throttle type |
Electronic expansion valves |
Refrigerant Type |
R417A, R407C,R410A |
Compressor Brand /type |
hitachi |
Compressor Qty |
1Pcs |
Heat source side Heat exchange type |
Efficient finned tube exchanger |
Heat source side Motor power fan type |
Axial flow fan |
Heat source side Motor power |
0.1KW |
Hot water side Heat exchanger type |
High titanium tube heat exchanger |
Hot water side Water flow |
4.40 m3/h |
Hot water side Water pressure drop |
20 KPA |
Hot water side Connect pipe size |
1 and 0.5 Inch |
Hot water side Water size max work pressure |
600KPA |
