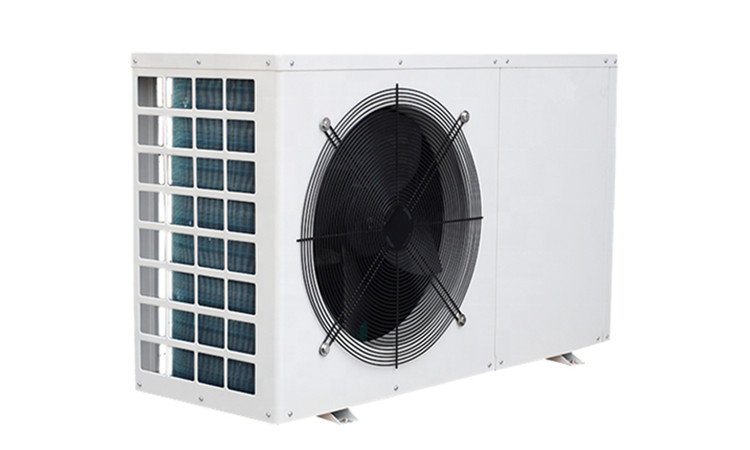

Swimming Pool Inverter Heat Pump Prices

Swimming pool inverter heat pumps are an effective way to heat swimming pools. Compared with other swimming pool heaters, swimming pool heat pumps have the lowest operating cost.


Our heat pump uses the latest Inverter technology. Each kilowatt of electricity used can deliver up to 14 kilowatts of heat to the swimming pool.


The swimming pool heater and the air conditioning unit work in reverse. It also obtains free heat from the air, providing an environmentally friendly way to heat your swimming pool at a very low operating cost.


The heat pump is easy to install and is ideal for heating swimming pools, swimming spas, koi ponds and hydrotherapy pools for summer, extended season or year-round use.


Leomon Technology is an expert in the heat pump industry. We have the most complete types of pool heaters and heat pumps at the lowest prices, and provide expert advice and support.


Swimming Pool Inverter Heat Pump Features :

1) PVC titanium heat exchanger, full corrosion resistance, more durable, low maintenance.
2) Inverter technology-variable operating speed
3) Using R32 refrigerant, high efficiency and environmental protection, no carbon dioxide emissions.
4) Compact structure, easy to disassemble and assemble.
5) Excellent COP-from 6.4 to 16.0 due to inverter technology
6) LCD touch screen controller, mobile phone Wifi control.
7) Air exchanger (finned coil) with hydrophilic coating.
8) Including automatic defrost function. (There is a reverse circulation valve inside)
9) Flow switch and high pressure cut off to ensure extra safety and protection
10) Low noise brushless fan motor

Warranty:
1). Passed CE and RoHS certification
2). Service life is about 20 years
3). 2 years warranty, buy with confidence

Heat pump components:
1.Silver welding
Silver welding technology makes the unit system more reliable; it is possible to avoid refrigerant leakage
2. Intelligent control
The unit adopts an intelligent control system: microprocessor digital controller, liquid crystal display
3. PVC titanium heat exchanger
Can resist harsh pool chemicals and corrosion
4. Low noise fan
Axial fan is adopted, with large air volume and low operating noise
5. Long-term reliability of Alco thermal expansion valve
6. Efficient and environmentally friendly refrigerant, does not destroy the ozone layer
7. World-renowned scroll compressor, low noise and high efficiency


Swimming Pool Inverter Heat Pump Specifications:

1. Power range: 3kw, 5kw, 7kw, 9kw, 10kw, 14kw, 15kw, 16kw, 20kw, 27kW, 41kW, 49kW, 95kW and 115kW, etc


Product model LM06-DC
Advised pool volume(m3) (with cover)
10-25
Heating capacity (kW)
6.2-2.5
Heating capacity (BTU/h)
21143-7843
Input power (kW)
1.09-0.17
COP
5.69-13.5
Heating capacity (KW)
4.8-2.3
Heating capacity (BTU/h)
16369-8526
Input power (KW)
1.04-0.32
COP
4.62-7.14
Rated current(A)
4.4
Minimum fuse current (A)
7
Advised water flux(m³/H)
2.5
IP Grade (Level of protection)
IPX4
Anti-electric shock Rate
I
Noise (dB(A)) (1m)
50-40
Net weight/Gross weight(kg)
54/66
Diameter of pipe (mm)
φ50
Metel plate
ABS plastic casing black color
Body size(W*D*H)mm
1008×380×577
Compressor
GMCC
Refrigerant
R410A
Power supply
220V/1p/ 50Hz-60HZ
Condenser
Titanium in PVC
Evaporator
L-1.5/900*500/φ7
Four-way valve
SHF-4-23U
Expansion valve
Sanhua
Motor
DC 25W
Fan
φ400*1
Controller
Mitsubishi driver
High-voltage switch
3.6/4.2MPa
Power line connect with unit
3*1.5mm2
Package
wooden package
