Description

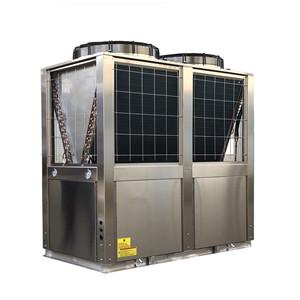

50kw air
source heat pump is an ideal solution for all kinds of large residential, hotel
and commercial buildings.
Features:
1.
Compact design
2. Advanced
and efficient technology
3. Long
pipe length
4. Top
indoor unit connection
5. High
static pressure
6. Top
low noise
Advantage:
1.
Compact outdoor unit
The
compactness and low sound level enable the unit to be installed into a variety
of environmentally constrained and/or confined spaces, such as mechanical rooms
and/or roofs.
2. Small
room application
Through
the optimal heat exchanger structure, up to 40 indoor units can be connected*.
Suitable for all kinds of small rooms.
3. Quiet
Design
Best-in-class
low-noise operation is achieved. This allows the unit to be installed in
different places without special soundproofing work.
4. Slim
and compact design
This
model is more compact than comparable outdoor units and can be installed
unobtrusively in tight spaces.
Specificaitons:
Restored
power (hot): 50.4kW
Absorbed
power (hot): 9.84kW
COP:
5.12
BTU/h:
171 971
(Cold)
restored power: 33kW
Power
consumption (cold): 6.8kW
COP:
4.85
BTU/h:
112 600
Power
supply: 380 ~ 415V / 3Ph / 50Hz
Water
flow (at the source): 9.1 m3/h
Water
flow (Circuit): 6.2 m3/h
Hydraulic
connections: 32mm
Production
hot water: 60 ° C
Cold
water production: 7-12 ° C
Compressor:
COPELAND ® (ZW72KAE)
Number
of compressor(s): 1
Gas
refrigerant: R407C (preload)
Noise in
operation: 50dB (A)
NET
dimensions (mm): 1280 x 830 x 800
Pack
(mm) dimensions: 1380 x 890 x 950
Net
weight: 370kg
Total weight: 400kg
