Description

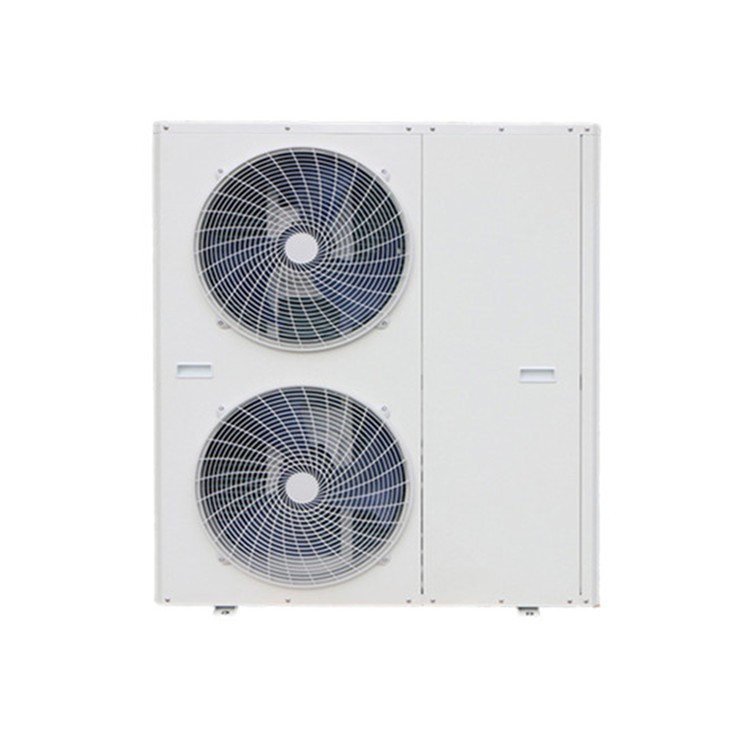

EVI Air Source Heat Pumps are designed for domestic/commercial hot water and house heating in cold areas with minimum temperatures above -25°C.
Features:
1. High efficiency and energy saving
The air source heat pump can freely absorb the heat energy in the air, and the electric energy is only used to drive the compressor to extract the heat in the air. Therefore, it only consumes a quarter of the traditional electric heater, saving users a lot of electricity bills.
2. Environmentally friendly
Using air thermal energy and electricity, the heat pump does not emit harmful gases during operation.
3. Available 24/7
All-weather operation: stable operation, not affected by any wind, rain and snow.
4. Durable
Copeland compressors use Enhanced Vapor Injection (EVI) technology, equipped with heat pump brand components such as crankcase heaters, Danfoss electronic expansion valves, Eaton AC contactors and thermal relays for special cold regions, ensuring high quality and long service life life.
5. Multiple protection
For example, if the system water flow is insufficient, the system will display high pressure protection and automatically stop the heat pump to protect the compressor from damage.
6. Linkage function
External signal on/off function
7. Guaranteed security
Water and electricity are completely isolated to avoid electric shock, explosion and poisoning; LCD digital controller runs automatically
8. Convenience
EVI heat pumps are easy to install in many places such as garages, balconies, kitchens, etc.
Specification:
Storage capacity: 8kW, 10kW, 12kW, 15kW, 17kW, 20kW, 25kW, 28kW, 30kW, 35kW, 40kW, 45kW, 55kW, 60kW, 90kW, 100kW, 115kW, etc.
|
Item |
LM-B5DF |
|
Rated heating capicity |
19.7KW |
|
Input power |
4.69KW |
|
Voltage |
380/50/3V/Hz/Ph |
|
Rated current |
8.4A |
|
Rated output water temperature |
55°C Max temp.: 60°C |
|
Hot water ouput |
420L/H |
|
Refrigeration |
R410a |
|
Control mode |
Microcomputer central processor (LCD control panel) |
|
Compressor Form |
Scroll type |
|
Compressor |
1 Pcs |
|
Compressor Brand |
Copeland |
|
Unit Net size |
1132*460*1255 |
|
Unit Weight |
160Kg |
|
Unit Nosie level |
≤55dB(A) |
|
Fan Form |
Internal rotor motor, magnesium aluminum alloy leaves (low noise) |
|
Fan Power |
90*2W |
|
Ambient temperature |
-25℃ -- 43℃ |
|
Package size |
1174*490*1397 mm |
|
Qty loading 20" container |
22set |
|
Qty loading 40" container |
44set |
|
Inlet pipe diameter |
DN25 |
|
Outlet pipe diameter |
DN25 |
