Description

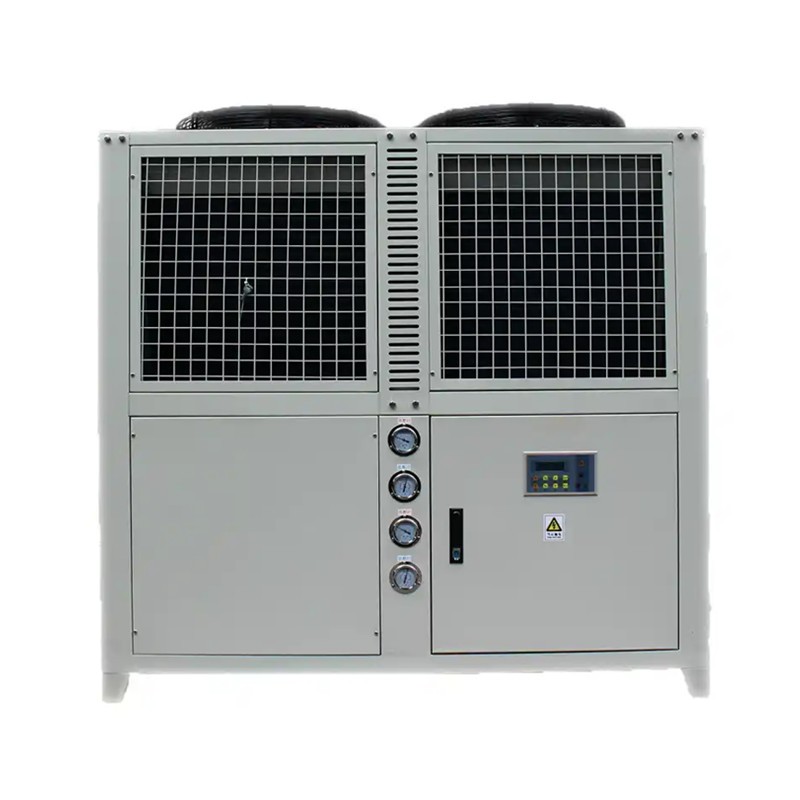

The 150°C high-temperature steam heat pump is an industrial steam generation unit designed specifically for process heating, featuring a heat pump system as its core component. It is primarily used to generate 150°C saturated steam, providing stable steam temperature and pressure for various industrial processes.
By absorbing low-grade heat from ambient air and upgrading it via a reverse Carnot cycle, the high-temperature steam heat pump achieves significant energy savings—reducing energy consumption by up to 80% compared to traditional electric or oil-fired boilers.
Featuring a corrosion-resistant structure, intelligent PLC control, and multiple safety protection functions, this unit operates effectively in ambient temperatures as low as 15°C. It is a highly efficient thermal energy conversion device widely used in industries such as food processing, chemicals, textiles, pharmaceuticals, and papermaking.
Advantages
1. High-Capacity Output for Centralized Steam Systems
Centralized steam supply systems require reliable sources to meet the combined demands of multiple production lines, process units, and plant heating systems. This unit delivers the high-capacity steam output required for these applications, generating sufficient 150°C saturated steam to support full-plant operations. It maintains stable pressure and temperature even during peak production periods when multiple steam-consuming units operate simultaneously, ensuring uninterrupted production.
2. Significant Energy Savings Compared to Traditional Boilers
Industrial steam generation is often one of the largest energy consumers in manufacturing plants. By absorbing heat from ambient air and converting it into high-temperature steam, the heat pump generates thermal energy far exceeding the electrical energy consumed. It offers substantial energy savings compared to electric resistance boilers and even greater savings compared to gas or coal-fired boilers. An intelligent control system optimizes performance based on real-time demand, minimizing energy waste and maximizing efficiency.
3. Clean, Oil-Free Steam for Sensitive Processes
This unit generates steam through heat transfer rather than combustion, producing steam that is clean, oil-free, and additive-free. It eliminates the need for boiler chemicals and produces no combustion residues or contaminants that could compromise product quality. Such high-purity steam is essential for industries with stringent requirements regarding product quality and contamination control, such as food processing and pharmaceuticals. The closed-loop system ensures consistent steam quality throughout the entire distribution network.
4. Modular design with scalable capacity
The equipment features a modular design, allowing capacity to expand in line with production growth. Facilities can start with a single unit and gradually add modules as steam demand increases, thereby spreading out investment costs. This modular design also offers installation flexibility; units can be arranged according to available space and configured to meet specific steam distribution requirements.
Applications
1. Large-scale food processing plants
Food processing plants require steam for various processes such as cooking, sterilization, drying, blanching, and cleaning. This equipment delivers high volumes of steam to support multiple processes across various production lines. Clean, oil-free steam ensures food remains uncontaminated and complies with food safety standards. It is suitable for a wide range of food processing facilities.
2. Chemical manufacturing complexes
Chemical plants require steam for reactor heating, distillation columns, reboilers, heat tracing, and process heating. The unit provides a continuous, reliable steam supply essential for chemical production. Its corrosion-resistant construction withstands harsh chemical environments, while zero-emission operation eliminates pollution risks. It is suitable for petrochemicals, fine chemicals, and specialty materials production.
3. Pharmaceutical parks
Pharmaceutical production requires clean steam for sterilization-in-place (SIP), equipment sterilization, and process heating. The unit delivers the pure, oil-free steam required for pharmaceutical applications and maintains steam quality throughout the distribution network. It is suitable for facilities producing active pharmaceutical ingredients (APIs), sterile injectables, vaccines, and biological products.

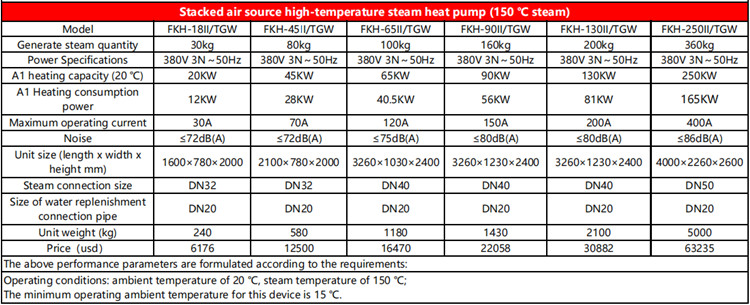

Specifications:
FAQs
Q1: Can a single unit supply steam to multiple buildings or production lines simultaneously?
A: Yes. The unit is designed for centralized steam supply systems and delivers the high-capacity output needed to serve multiple steam users across a facility. With appropriate steam distribution piping and pressure-reducing stations, the system can supply steam at varying pressures to different zones as needed, providing the flexibility required for large-scale industrial operations.
Q2: How does the system maintain stable pressure across long-distance steam distribution networks?
A: The system is engineered for stable pressure control and includes features to compensate for pressure drops along the distribution network. An intelligent control system continuously monitors pressure at critical points and adjusts operations accordingly. Proper pipe sizing, insulation, and condensate drainage are critical to the performance of the distribution system. Our engineering team can assist you in designing the distribution network to ensure a stable steam supply for all end-users.
Q3: How does the payback period compare to that of a traditional boiler?
A: Although the initial investment for a heat pump may be higher than for a traditional boiler, ongoing operating costs are significantly lower due to superior energy efficiency. For facilities requiring a continuous steam supply, energy savings often result in a reasonable payback period. Furthermore, heat pumps offer advantages such as lower maintenance costs and the elimination of fuel storage and emissions control requirements, leading to a significantly lower total cost of ownership over their service life.
