How to Collect Operating Data for Air Source Heat Pump Systems?

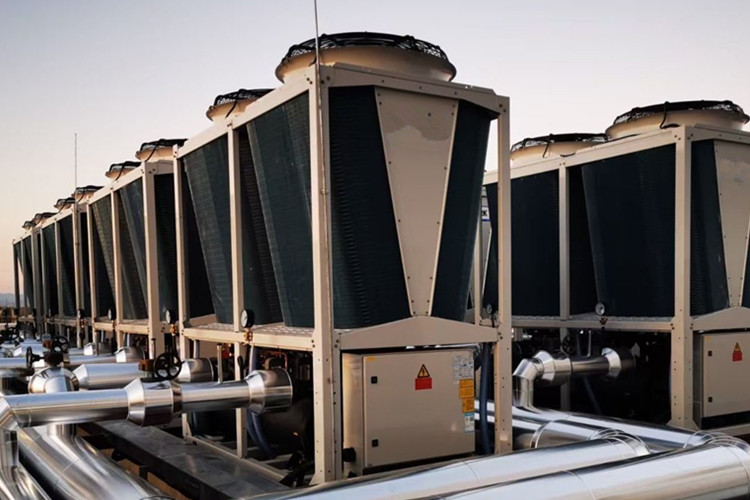

In the frigid winters of northern China, where temperatures can drop to -25°C, collecting operating data from air source heat pump systems is a crucial prerequisite for fault early warning, energy consumption optimization, and scientific operation and maintenance. Accurate heat pump data collection allows for timely detection of heat pump anomalies, assessment of energy efficiency, and provides a reliable basis for subsequent upgrades and maintenance decisions for the air source heat pump system.
1. Core Content of Data Acquisition
To comprehensively understand the operating status of an air source heat pump system, the following four types of data need to be collected:
1) Temperature Data
* Supply water temperature, return water temperature, ambient temperature
* Monitor heat exchange efficiency and low-temperature adaptability to determine if the system meets the stable operation requirement of -25℃.
2) Pressure Data
* Supply water pressure, return water pressure, total system pressure
* Ensure the safe operation of the heat pump system under high pressure fluctuations, preventing pipe freezing or leakage.
3) Flow Data
* Hot water flow rate, steam flow rate, etc.
* Assess the heat load matching degree and circulation stability of the heat pump system.
4) Other Key Parameters
* Running time, power consumption, liquid level, pH value, conductivity, etc.
* Support comprehensive performance analysis of air source heat pumps and early warning of corrosion and scaling risks.
2. Mainstream Data Acquisition Methods and Technical Solutions for Air Source Heat Pumps
1) Sensor + Data Acquisition Unit Solution (Suitable for localized deployment)
* Install temperature, pressure, and flow sensors at key nodes;
* Data is centrally read and stored using data acquisition devices (such as PLCs or dedicated modules);
* Can be combined with ADAM series intelligent modules to achieve local control and data upload;
* Suitable for industrial or rural scenarios with high data security requirements and unstable network conditions.
2) Remote Monitoring System + IoT Platform (Recommended for Intelligent Management)
* Utilizes Industrial Internet of Things (IIoT) technology to connect heat pump equipment to a cloud platform (such as HiWoo Cloud);
* Enables remote real-time monitoring, historical data analysis, and fault early warning functions;
* Supports multi-terminal access (APP, WeChat mini-program, Web), facilitating centralized management;
* Typical architecture includes a three-layer "cloud-edge-device" structure, ensuring rapid response and precise control.
3) Wireless Data Transmission Solution (Suitable for Distributed or Older Air Source Heat Pump System Retrofitting)
* Uses GPRS/DTU wireless modules to wirelessly transmit field data to a remote server;
* AnyLink GPRS modules enable low-cost networking, suitable for HVAC system maintenance;
* Supports automatic reporting and anomaly alarms, reducing manual inspection costs.
4) Direct Reading from Wired Controller (Basic-Level Data Acquisition)
* Most air source heat pumps are equipped with a wired controller, allowing direct viewing of current operating parameters;
* Easy to operate, but cannot achieve long-term recording and trend analysis;
* Suitable as a temporary inspection method or auxiliary verification.
3. Key Functional Requirements of the Data Acquisition System
1) Real-time Monitoring: Dynamically display key parameters such as temperature, pressure, and flow rate, supporting chart visualization.
2) Historical Data Storage: Save heat pump operation data for at least one heating season for performance comparison and trend analysis.
3) Anomaly Warning: Set thresholds; automatically send audible and visual notifications, SMS messages, or APP notifications when limits are exceeded.
4) Energy Consumption Analysis: Statistically calculate electricity consumption, calculate COP values, and identify energy-saving potential.
5) Remote Control: Support remote start/stop, mode switching, and parameter setting of the air source heat pump, improving response efficiency.
4. Implementation Recommendations for Localized Air Source Heat Pump Data Acquisition (for Northern Climates)
1) Enhance Low-Temperature Environment Adaptability
* Use sensors with a wide temperature range of -40℃ and protective housings;
* Ensure proper insulation and antifreeze treatment of the outdoor heat pump wiring to avoid signal interruption.
2) Establish a Dual-Channel Backup Mechanism
* Use 4G wireless transmission as the primary method, with local SD card storage as a backup;
* Prevent data loss due to network interruptions caused by extreme weather.
3) Regular Calibration and Maintenance
* Calibrate sensor accuracy before each heating season;
* Clean dust from the probe and check wiring tightness.
4) Air Source Heat Pump Data Analysis with Python
* Use Python scripts to interface with the data acquisition system for air source heat pump data cleaning, modeling, and energy efficiency optimization analysis;
* Enables functions such as COP trend prediction and fault mode identification.
