Description

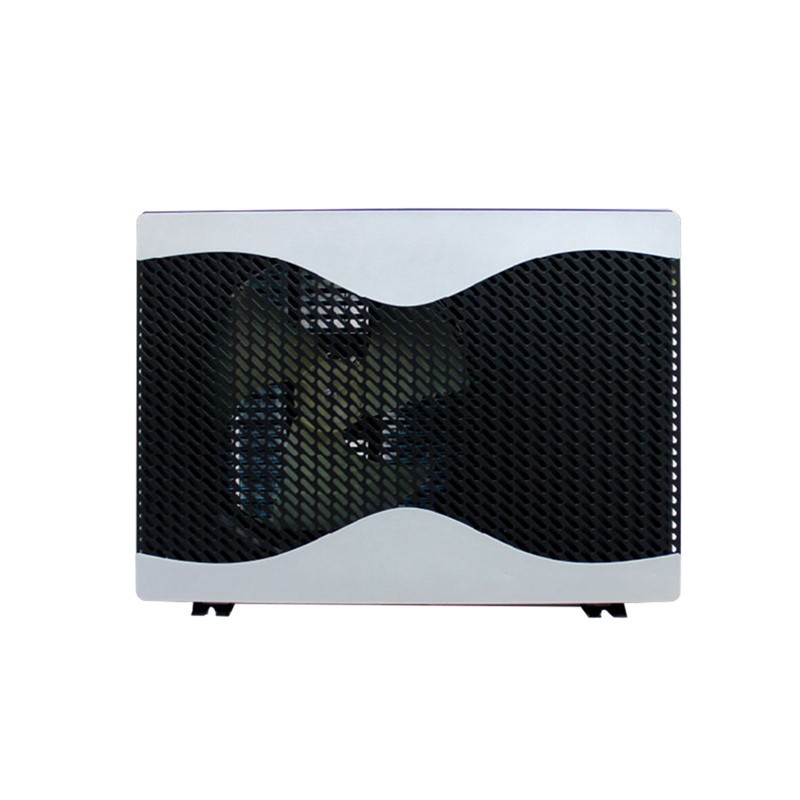

This pool heat pump delivers up to 35,000 BTU of heating capacity and is suitable for pools up to 9,000 gallons. Utilizing advanced air-source technology to capture heat from the air, it offers high efficiency and can save up to 70% on energy costs compared to natural gas heaters.
Equipped with patented heat exchange technology and intelligent inverter controls, the unit automatically switches to a low-power mode once the pool reaches the set temperature. Unlike traditional heaters that shut off completely after reaching the target temperature, the Leomon pool heater dynamically adjusts power output, resulting in superior energy savings, quieter operation, and consistent comfort.
Features
1. PVC-titanium heat exchanger: Fully corrosion-resistant and highly durable.
2. Compact design: Easy to disassemble and service.
3. High-efficiency compressor: Energy-saving performance.
4. Flow switch: Provides water flow protection.
5. Intelligent controller: Features rapid microprocessor adjustment.
6. Smart wired controller: Equipped with an LCD display.
7. Air exchanger (finned coil): Features a hydrophilic coating.
8. Automatic defrost function.
Advantages
1. Proven Full-Inverter Technology
The synergy between an upgraded compressor and inverter technology is key to a top-tier product, enhancing energy efficiency while maximizing cost savings for the user.
2. Smart Wi-Fi Control (App)
Supports Wi-Fi and 4G/5G connectivity, allowing users to fully control the pool heat pump via a mobile app. The app is available for download on major app stores.
3. Low-Noise Operation
The compressor features a fully enclosed housing design that contains operating noise, ensuring exceptionally low overall noise levels. The average noise level is just 15–23 dB(A) at a distance of 10 meters.
4. Advanced Titanium Heat Exchanger
Titanium material offers superior corrosion resistance. Our heat exchanger utilizes seamless pure titanium tubing as the heat transfer element, ensuring a long service life and eliminating the need for additional after-sales maintenance.
Specifications
Max. pool volume (m³*): 40
Recommended pool volume (m³*): 12–33
Temperature setting range (heating, °C): 6–41
Temperature setting range (cooling, °C): 6–35
Compressor type: Mitsubishi Inverter
Power supply (Voltage/Phase/Frequency): 220–240V / Single-phase / 50Hz
Rated current (A): 6.90
Rated fuse (A): 10
Recommended water flow rate (L/h): 2800
Max. water pressure drop (kPa): 12
Heat exchanger: Twisted titanium tube in PVC housing
Water inlet/outlet connections (mm): 32/38/50
Fan type/quantity: Horizontal
Fan speed (RPM): 500–850
Fan input power (W): 5–75
Noise level at 1m (dB(A)): 36–46
Refrigerant type: R32 (gas)
Refrigerant charge (g): 650
CO2 equivalent (tonnes): 0.54
Protection class: IPx4
Conditions: Air 28°C / Water 28°C / Humidity 80%*
Cooling capacity (kW): 9–2.3
Power consumption (kW): 1.55–0.14
COP: 16–5.8
Conditions: Air 15°C / Water 26°C / Humidity 70%*
Cooling capacity (kW): 6.6–1.9
Power consumption (kW): 1.43–0.27
COP: 7.1–4.6
Need more help
Please contact us for further information and a quote.
