Description

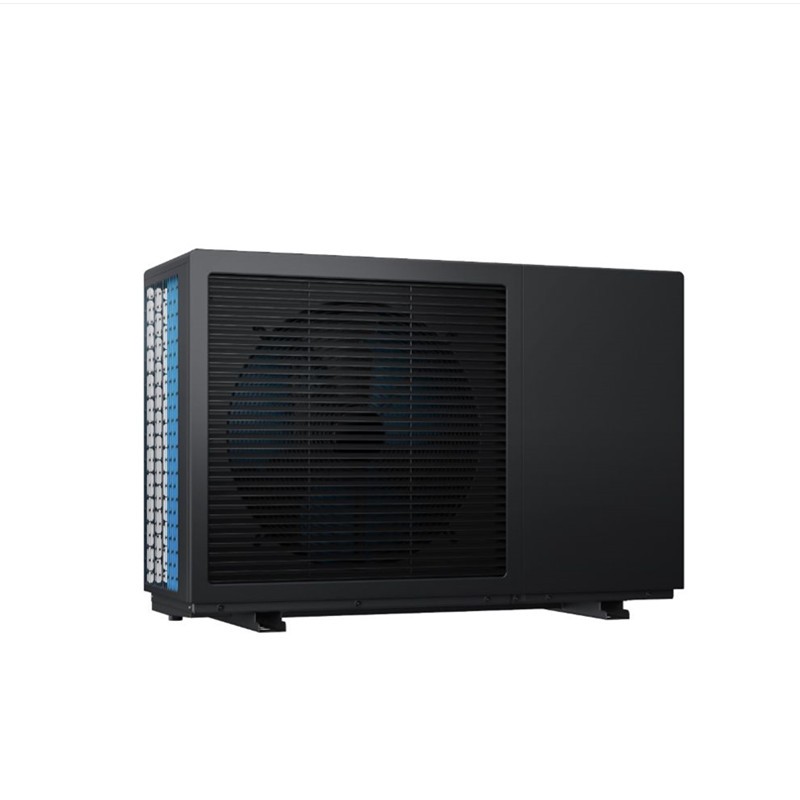

This 14kW Smart Series inverter pool heat pump utilizes an inverter compressor, a variable-speed fan, and a logic control unit to reduce overall power consumption while delivering rapid heating or cooling and precise temperature control.
With an output of 14kW and a maximum pool capacity of 60m³, this heat pump is the ideal choice for users seeking efficient and flexible temperature control. A Coefficient of Performance (COP) of up to 16 ensures cost-effective operation.
Features
1. PVC-Titanium heat exchanger: Fully corrosion-resistant and highly durable.
2. Compact structure: Easy to disassemble for convenient maintenance.
3. High-efficiency compressor: Energy-saving performance.
4. Flow switch: Provides water flow protection.
5. Smart controller: Features rapid microprocessor regulation.
6. Smart wired controller: Equipped with an LCD display.
7. Air exchanger (finned coil): Features a hydrophilic coating.
8. Automatic defrost function.
Advantages
1. Proven Full-Inverter Technology
The synergy between an advanced compressor and inverter technology is key to a premium product; it not only boosts energy efficiency but also delivers significant cost savings for the user.
2. Smart Wi-Fi Control (App)
Supports Wi-Fi and 4G/5G connectivity, allowing users to fully control the pool heat pump via a mobile app. The app is available for download on major app stores.
3. Low-Noise Operation
The compressor features a fully enclosed housing design that effectively contains operating noise, ensuring exceptionally quiet performance. Average noise levels are as low as 15–23 dB(A) at a distance of 10 meters.
4. Advanced Titanium Heat Exchanger
Titanium offers superior corrosion resistance. Our heat exchangers utilize seamless pure titanium tubing as the heat transfer element, ensuring a long service life and minimizing the need for after-sales maintenance.
Specifications
Maximum pool volume (L): 60,000
Recommended maximum pool volume (L): 50,000
Compressor type: Inverter
Power supply: 220–240 V / 50 Hz / Single-phase
Rated operating current (A): 11.5
Maximum operating current (A): 16
Recommended water flow rate (L/h): 3,700
Temperature setting range (Heating/Cooling): 8–40°C
Operating temperature range (Air): -12°C
Number of fans: 1
Airflow rate (m³/h): 500–850
Heat exchanger material: Titanium
Inlet/Outlet size (mm): 32 / 38 / 50
Protection class: IPX4
Noise level at 10 m (dB(A)): 25.2
Refrigerant type: R290
Refrigerant charge (g): 1,000
CO2 equivalent (kg): 3.0
At air temperature 28°C / water temperature 28°C / humidity 80%:
Heating capacity (kW): 14
Power consumption (kW): 2.30–0.18
COP: 16–6.1
At air temperature 15°C / water temperature 26°C / humidity 70%:
Heating capacity (kW): 10.2
Power consumption (kW): 2.37–0.19
COP: 11.0–4.3
Dimensions and Weight
Net dimensions (L/W/H) (mm): 983×375×686
Gross dimensions (L/W/H) (mm): 1043×475×829
Net/Gross weight (kg): 64/71
Get More Assistance
Please contact us for further information and a quote.
