Description

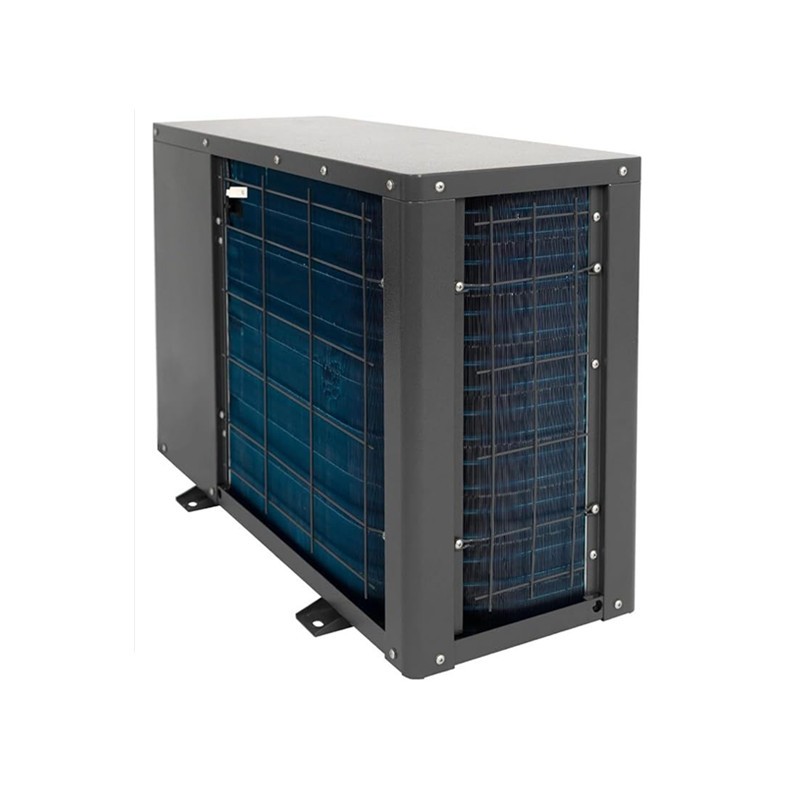

This 9kW pool heat pump features Wi-Fi connectivity and a metal casing, boasting a Coefficient of Performance (COP) of up to 16. Aside from free—albeit inconsistent—solar energy, pool heat pumps represent the most eco-friendly and cost-effective method for heating a pool.
Suitable for pools with a maximum volume of 40 m³. Power consumption ranges from 1.55 kW to 0.14 kW, with a COP of 16 to 5.8.
Features
1. PVC-titanium heat exchanger: Fully corrosion-resistant and highly durable.
2. Compact structure: Easy to disassemble for convenient maintenance.
3. High-efficiency compressor: Energy-saving performance.
4. Flow switch: Provides water flow protection.
5. Smart controller: Features rapid microprocessor-based regulation.
6. Smart wired controller: Equipped with an LCD display.
7. Air exchanger (finned coil): Features a hydrophilic coating.
8. Automatic defrost function.
Advantages
1. Proven Full-Inverter Technology
The synergy between an advanced compressor and inverter technology is key to creating a premium product; this not only boosts energy efficiency but also delivers significant cost savings for the user.
2. Smart Wi-Fi Control (App)
Supports Wi-Fi and 4G/5G connectivity, allowing users to fully control the pool heat pump via a mobile app. The app is available for download on major app stores.
3. Low-Noise Operation
The compressor utilizes a fully enclosed housing design that effectively contains operating noise, ensuring exceptionally low overall noise levels. The average noise level at a distance of 10 meters is just 15–23 dB(A).
4. Advanced Titanium Heat Exchanger
Titanium offers superior corrosion resistance. Our heat exchangers utilize seamless pure titanium tubing as the heat transfer element, ensuring a long service life and eliminating the need for extensive after-sales maintenance.
Specifications
Max. pool volume (m³*): 40
Recommended pool volume (m³*): 12–33
Temperature setting range (heating), °C: 6–41
Temperature setting range (cooling), °C: 6–35
Compressor type: Mitsubishi Inverter
Power supply voltage/phase/frequency: 220–240 V / Single-phase / 50 Hz
Rated current (A): 6.90
Rated fuse (A): 10
Recommended water flow rate: 2800 L/h
Max. water pressure drop (kPa): 12
Heat exchanger: Titanium twisted tube in PVC housing
Water inlet/outlet connections (mm): 32/38/50
Fan type/quantity: Horizontal
Fan speed (rpm): 500–850
Fan input power (W): 5–75
Noise level at 1m (dB(A)): 36–46
Refrigerant type: R32 (gas)
Refrigerant charge (g): 650
CO2 equivalent (tonnes): 0.54
Protection class: IPx4
At air temp. 28°C / water temp. 28°C / humidity 80%*:
Heating capacity (kW): 9–2.3
Power consumption (kW): 1.55–0.14
COP: 16–5.8
At air temp. 15°C / water temp. 26°C / humidity 70%*:
Heating capacity (kW): 6.6–1.9
Power consumption (kW): 1.43–0.27
COP: 7.1–4.6
