  • 20kW Inverter Heat Pump

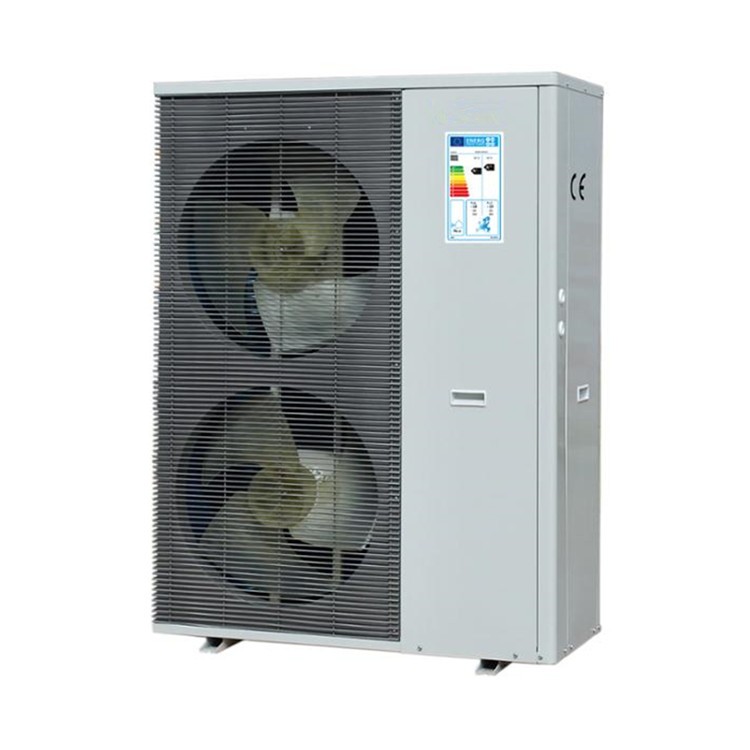

20kW Inverter Heat Pump

  • Product Item:Inverter Heat Pump
  • Max. COP: 5.56
  • Compressor : EVI Inverter Compressor
  • Running Temp: -15℃~45℃
  • Function : Pool Heating & Cooling
  • Inquiry Send Email

    Description

    Low profile, economical and environmentally friendly, the R32 20kw heat pump is the definition of comfort. It will allow for constant water temperatures to prolong or predict summer.

    Guaranteed best swimming in a swimming pool of up to 85 m3, equipped with eco-friendly heating.


    The heat pump R32 20KW is a real heating solution for your swimming pool. It is a real alloy between energy saving and environmental protection.

    In fact, this heat pump has 'staged auto-adjustment of heater capacity, which means it automatically adjusts its power usage based on water temperature to maintain environmental basins and save 50% to 70% of energy.

    The pump will be delivered and ready to install for pools ranging from 45 to 85 square meters.


    Inverter heat pump Features:

    1. Inverter compressor

    2. 3-speed ventilated engine

    3. At the beginning of the season - 100% operation, then 80%-20% maintain temperature

    4. The average COP for the 180-day season is 10

    5. Energy saving 50-70%

    6. The sound pressure at a distance of 10m is 20 to 36 dB.

    7. Automatic de-icing by reversing the cycle


    Technical data:

    Heating mode:

    Maximum return capacity: 20.50kW *

    Input power: 1.54 ~ 4.21kW

    COP 5.94 Max.

    cooling method:

    Maximum return capacity: 15.50kW**

    Input power: 1.89 ~ 5.78kW

    EER 3.89 Max.

    Power supply: 220-240V / 1ph / 50Hz (380v free

    Use) Use consumption: 6.9 ~ 27.7A

    Maximum hot water temperature: 55°C

    Operating temperature: -25°C to 43°C

    Compressor: PANASONIC ®

    Type: EVI DC inverter

    Refrigerant gas: R32

    Heat exchanger: plate type

    Ventilation: 2 fans

    Type: DC inverter

    Maximum power: 200W

    Speed: 300 to 800t/min wind

    Quantity: 5000 m3/h

    Noise emission: 42 to 58dB (A)

    At 1m: 42dB (A)

    Hydraulic connection: G1"

    Water flow (L/h): 3095 max

    Net size: 1110 x 475 x 1355 mm

    Packing size: 1220 x 540 x 1400 mm

    Net weight: 124Kg

    Package weight: 161kg * A7W30-A6W35
