Description

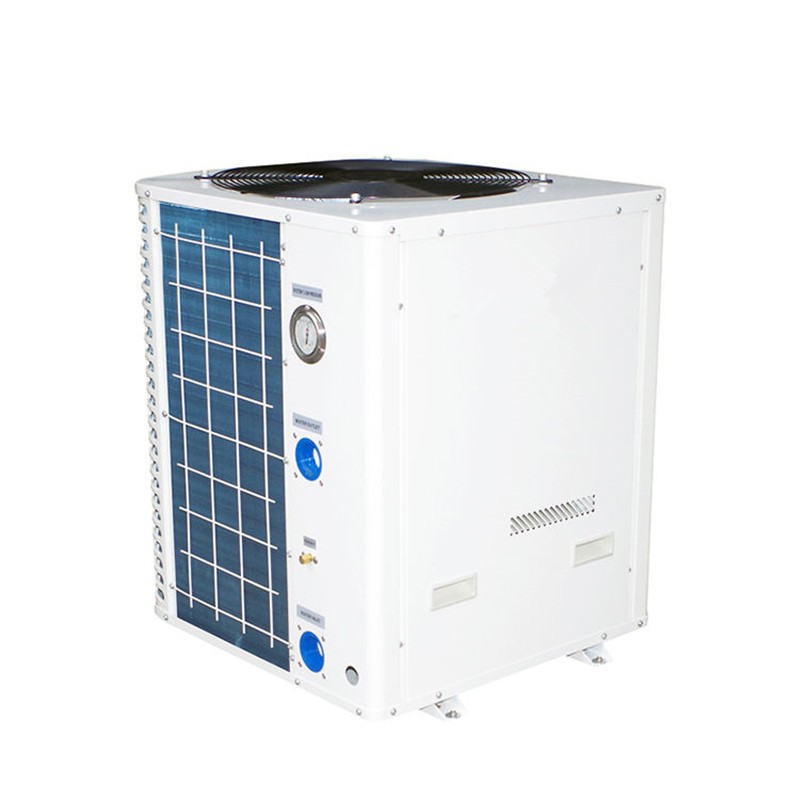

Air source heat pumps are an ideal solution for home heating and hot water supply with minimal environmental impact. This Leomon DC inverter air source heat pump boasts an ERP A+++ energy efficiency rating, effectively improving energy efficiency and saving energy. Its maximum heating capacity is 16.5-26kW, maximum cooling capacity is 14.7-23.2kW, and its maximum energy efficiency ratio (COP) is 5.65.
As a renewable and clean solution, Leomon's standalone DC inverter air source heat pump effectively reduces residential energy consumption and minimizes CO2 emissions. Its operating temperature range is -20°C to 45°C.
This heat pump features five switchable operating modes to meet various needs, including central hot water, central cooling, whole-house heating, hot water + cooling, and hot water + heating. Using this renewable energy device will ultimately save you on your electricity bill.
Features
1. ERP A+++ Energy Label: Rated ERP A+++, this air source heat pump boasts low energy consumption and a high energy efficiency ratio, with a maximum COP of 5.65 and a SCOP of 4.88. This highly efficient and energy-saving DC inverter heat pump saves over 30% more energy than other air source heat pumps.
2. Fast Heating/Cooling Speed: Panasonic's rotary compressor operates efficiently before the indoor temperature reaches the set value, allowing the unit to run at a high frequency for faster water heating or home heating/cooling.
3. Smart Control: Utilizing a smart CAREL controller (with RS485 interface), it enables联动 control between the heat pump unit and end-use devices. Cascading functionality allows simultaneous control of multiple heat pumps, improving operational efficiency. Users can control the device anytime, anywhere using a smartphone via a Wi-Fi app.
4. Super Low Noise: The Leomon full-frequency inverter heat pump series achieves a low noise level of 59dB(A) in sound power testing, equivalent to 45dB at a distance of 1 meter.
5. Five Working Modes:
Mode 1: Central Hot Water Supply: Constant temperature, ample water supply, 24-hour instant hot water supply.
Mode 2: Central Cooling: Water-cooled air conditioning, gentle airflow for human comfort.
Mode 3: Whole House Heating: Water-circulating floor heating, even heat distribution, healthy and energy-saving.
Mode 4: Hot Water + House Cooling: Simultaneously meets the requirements of central hot water and air conditioning.
Mode 5: Hot Water + House Heating: Simultaneously meets the requirements of central hot water and room heating.
Specifications
Heating capacity: 65kW
Cooling capacity: 50kW
Condenser capacity: 59kW
Rated power: 15kW
COP: 4.33
Dehumidification: 30L/h
Power supply: 380V/3ph/50hz
Air flow production: 6000m3/h
Air cooling: 1800m3/h (Pt: 400 Pa / Pst: 125 Pa)
Pressure loss: 0.4Mpa
Water temperature outlet: 28°C
Maximum water temperature outlet: 38°C
Water flow: 9000L/h
Evaporator: Finned tube exchanger
Condenser: Titanium
External condenser type: air/water
Hydraulic connections: DN50 male
Operating sound pressure: 60dbA
Dimensions:
Indoor unit: 2250 x 1150 x 1700 mm
Weight: 450kg
Outdoor unit: 800 x 800 x 1050 mm
Weight: 80kg
For more help, please contact us for more information and a quote.
