Description

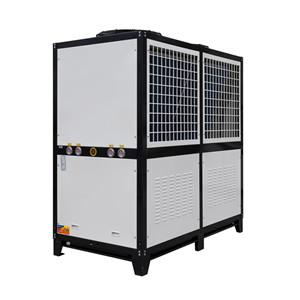

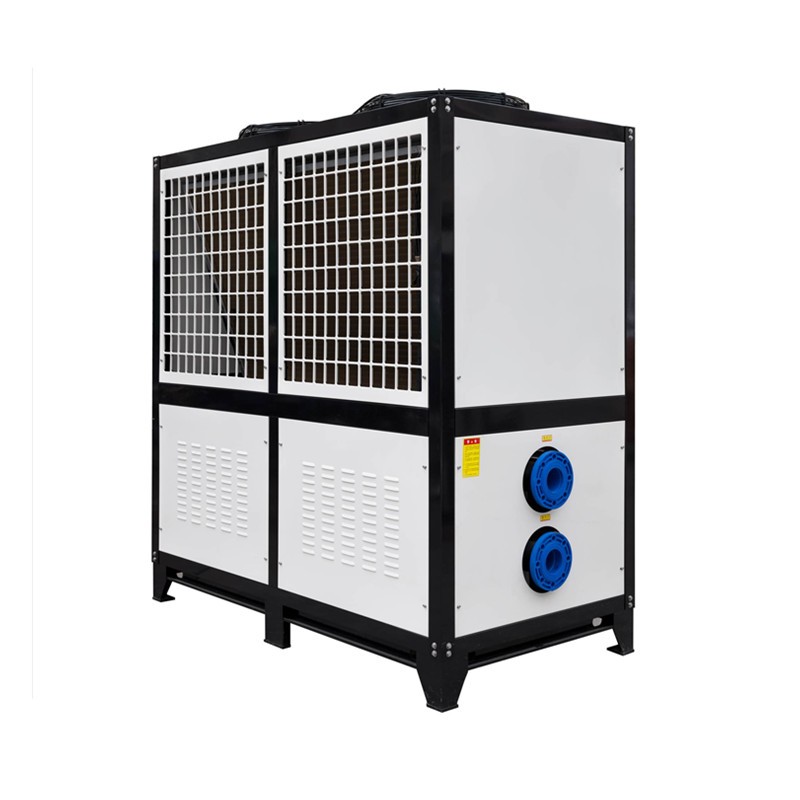

Our high-temperature heat pump, with its dedicated compressor and intelligent temperature control system, can stably provide hot water at temperatures up to 75°C. Even when the outdoor temperature is consistently below -25°C, the heat pump can still operate normally.
The 75°C hot water output series is suitable for industrial applications such as electroplating plants, food sterilization or drying, and laundry, as well as for hot water supply in hotels with small water tanks.
1. Hot water output temperature can reach up to 75°C.
2. COP can reach 3.5 when using A20W15/80.
3. Environmentally friendly refrigerant: R410A.
4. Equipped with automatic defrosting function (built-in reverse cycle valve).
5. Corrosion-resistant casing: Durable coating; screwless design, using stainless steel bolts and nuts, no rust.
6. General testing and operational testing are performed on each unit before packaging at the factory.
7. Comprehensive protection – ensuring trouble-free operation in extremely cold environments. Features include anti-freeze protection, water flow protection, over-pressure protection, and under-pressure protection.
8. Obtained EN14511 test report and CE certificate.
Advantages:
1. Enhanced Vapor Injection
Utilizing EVI (Enhanced Vapor Injection) technology. Our equipment can operate normally in harsh weather conditions as low as -30℃/-22℉.
2. Hot water up to 75 degrees Celsius
It is suitable for houses with poor insulation or existing old radiators. It can also be used in many industrial hot water applications.
3. Panasonic EVI DC Inverter Compressor
The intelligent heat pump perfectly combines environmentally friendly R410A refrigerant and advanced EVI DC inverter technology, reducing energy consumption and increasing heating capacity at 55°C hot water and -25°C low temperatures.
4. Fin-type Heat Exchanger
The fin-type heat exchanger uses corrugated copper tubes, greatly improving thermal efficiency, and has a hydrophilic coated surface for efficient defrosting.

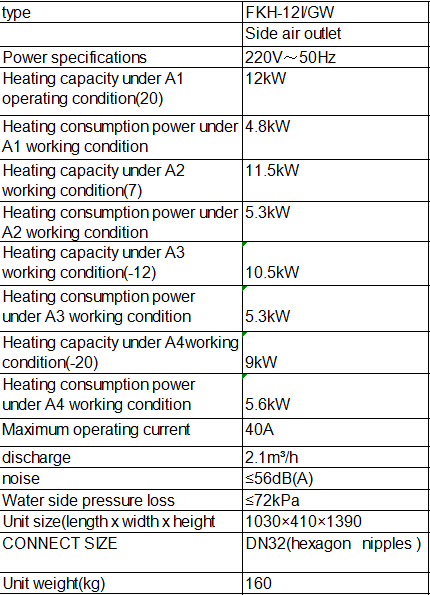

Technical Specifications
Get more help
If you are interested in our high-temperature heat pump, please contact us. Our heat pump experts will provide you with the best solution.
