Description

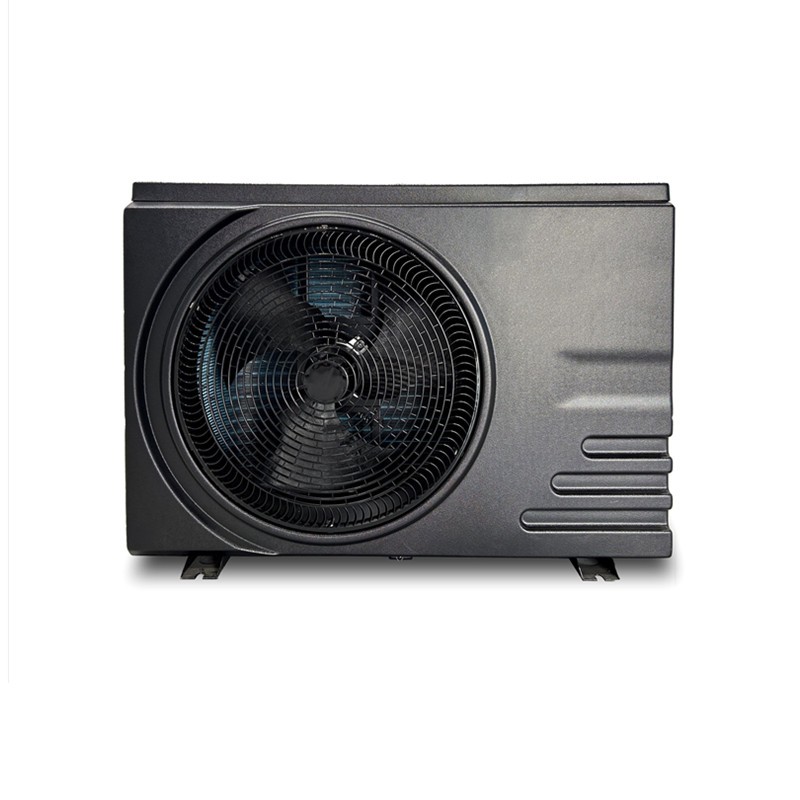

Transform your hot tub or swim spa experience with our 23,000 BTU heat pump. Delivering exceptional performance while saving up to 80% on energy, this unit ensures your water stays at the perfect temperature year-round. Enjoy a reliable, eco-friendly heating solution designed for premium outdoor living.
Features
1. Heating capacity: 7.5 kW – 24 kW
2. Operating ambient temperature range: -7°C to 43°C
3. Target heating/cooling range: 9°C to 43°C
5. Energy Efficiency Ratio (EER) up to 15.0
6. Free Wi-Fi app control
Advantages
1. Save up to 80%
Enjoy superior performance while significantly reducing energy consumption. Compared to traditional heating systems, this high-efficiency unit can cut heating costs by up to 80%, offering clear long-term financial benefits.
2. Winter Freeze Protection
Designed to withstand temperatures as low as -7°C. A revolutionary dual-layer freeze protection system and smart monitoring safeguard your plumbing and heat exchanger during harsh winters—no need to drain the pool.
3. Ultra-Quiet Operation
Powerful heating without the noise. Operating at just 54 dB(A), the ultra-quiet design ensures your garden remains peaceful and serene while the unit is running.
4. Eco-Friendly Refrigerant
Enjoy the warmth of your spa with peace of mind. This unit uses R32 refrigerant, a clean and efficient option that is far more environmentally friendly than traditional gases.
5. Refreshing Summer Mode
Perfect for beating the heat. Simply switch to cooling mode to lower the water temperature to a refreshing 8°C, turning your spa into the ultimate cool oasis.
6. User-Friendly Controls
Take full control of your comfort. An intuitive wired remote panel makes it easy to set timers, adjust temperatures, and switch operating modes.
Specifications
Heating capacity at 26°C air temperature
Heating output (kW): 7.2–1.7
Power input (kW): 1.06–0.11
COP: 15.8–6.8
Heating capacity at 15°C air temperature
Heating output (kW): 5.9–1.4
Power input (kW): 1.2–0.18
COP: 7.6–4.9
General Data
Power supply: 220–240 V / 1 / 50 Hz
Max. input power (kW): 1.45
Max. current (A): 7.1
Water flow rate (m³/h): 2.5
Water connection: 1.5-inch female thread
Refrigerant: R32
Heat exchanger: Titanium
Airflow direction: Horizontal
Defrosting method: 4-way valve
Operating temperature range (°C): -15 to 43
Water temperature range (heating mode) (°C): 8 to 40
Casing material: ABS
Waterproof rating: IPX4
Noise level (dB(A)) at 1m: 41–51
Net weight (kg): 42
Net dimensions (mm): 530 (L) x 530 (W) x 640 (H)
